The HME-Pegasus P1P060 series is a low-power, high-performance, and high-density FPGA device that supports programmable logic, 10 expansion, high-bandwidth memory operations,and high-speed data communication.

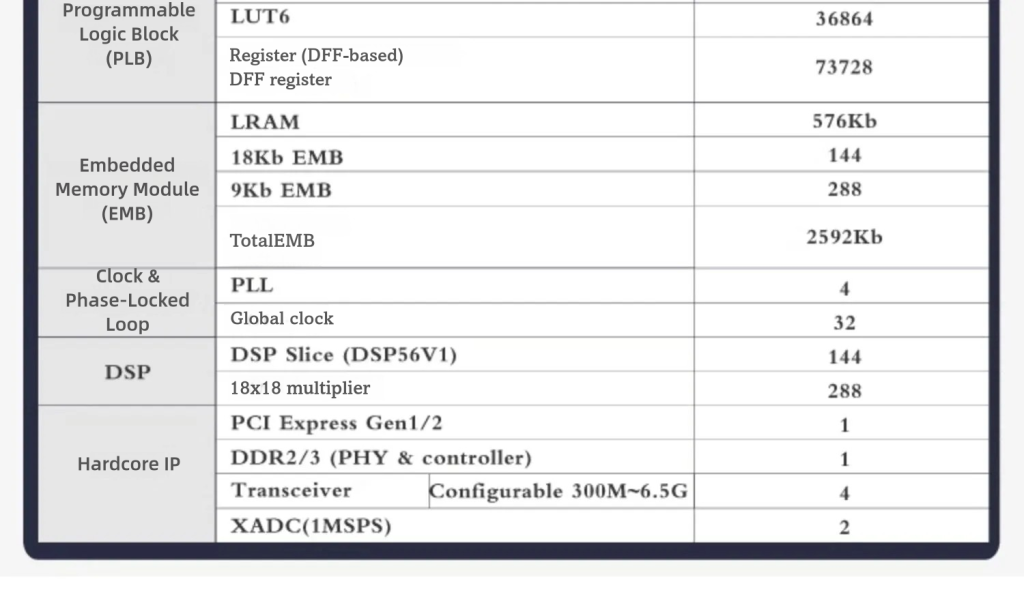

The Pegasus series utilizes a mature 40nm CMos process, offering an efficient dual-register plus LTU6 architecture and a rich selection of built-in system-level modules including 18Kb (2x9Kb) RAM modules, second-generation DsP56V1 slices, DDR memory controllers and PHY, enhanced PLL and clock management modules, power-optimized high-speed serial transceiver modules, PCl Express-compatible endpoint modules advanced system-level power management modes, 1MSPs XADc, auto-detection configuration options, and enhanced ip security with AEs protection.
The Pegasus P1P060 series devices provide solutions for the application needs of high-performance, high-speed computing designs, and large-capacity logic designs.
