MLKPAI_FS01

This development board is ideal for a wide range of applications, including industrial control, embedded systems, and multimedia. Its combination of a powerful dual-core ARM processor, industrial-grade reliability, and compact design makes it a versatile and robust choice for developers and engineers.

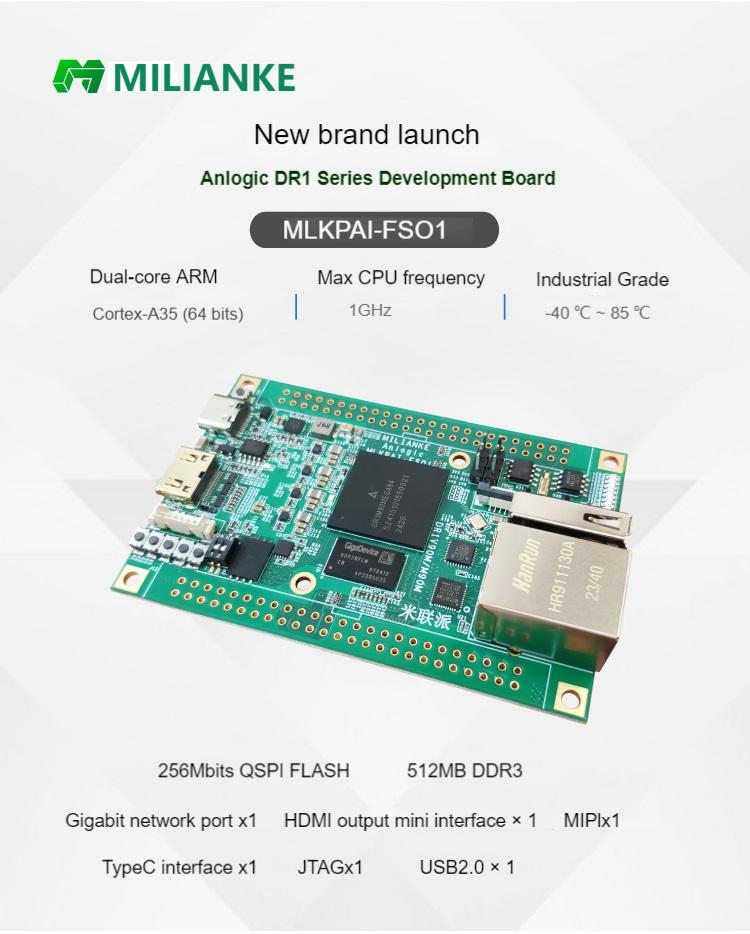

MLKPAI-FS01-DR1M90/DR1V90 development board from the new brand “MLKPAI” (MLKPAI), featuring the Anlogic DR1 series. This compact and lightweight board is designed for industrial applications, offering a range of features suitable for various embedded and development tasks.

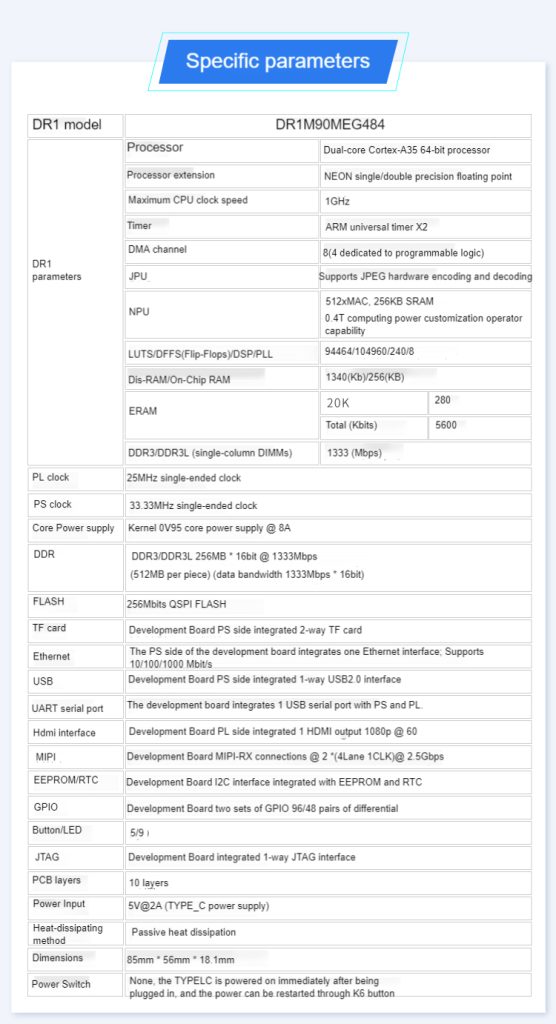

Key features:

• Dual-Core ARM CPU: Equipped with a dual-core ARM Cortex-A35 (64-bit) processor, providing efficient processing capabilities.

• Maximum CPU Frequency: The CPU can reach a maximum frequency of 1.6GHz.

• Industrial Grade: Designed to operate reliably in industrial environments, with a temperature range of -40°C to 85°C.

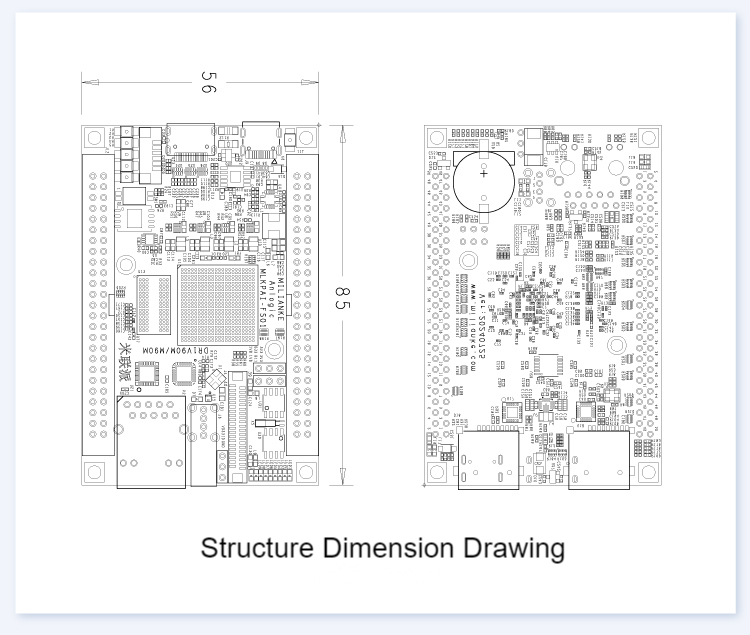

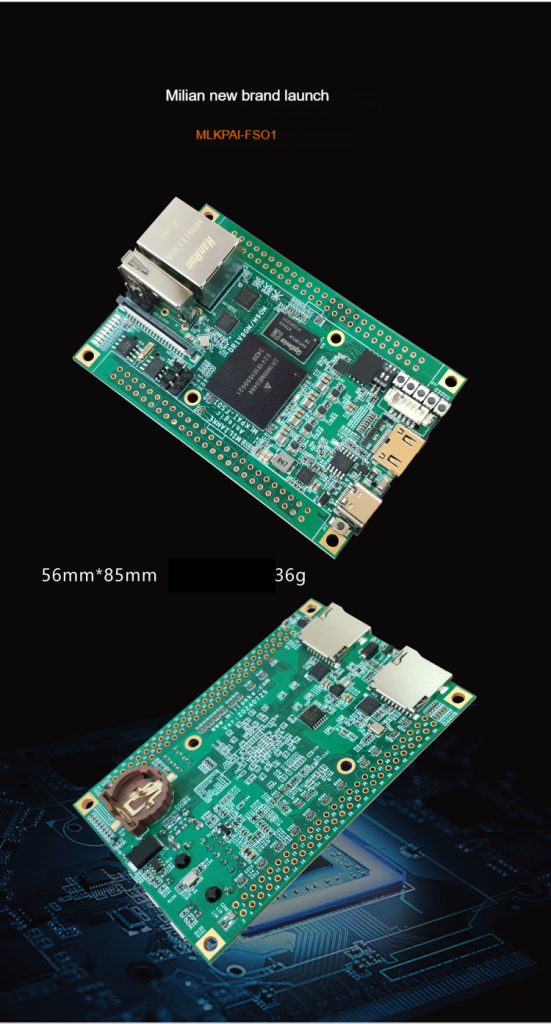

• Compact Size: The board measures 56mm x 85mm and weighs only 36g, making it highly portable and suitable for space-constrained applications.

• Memory:

  • 256Mbits QSPI Flash: Provides storage for firmware and data.

  • 512MB DDR3: Ensures fast data access and processing.

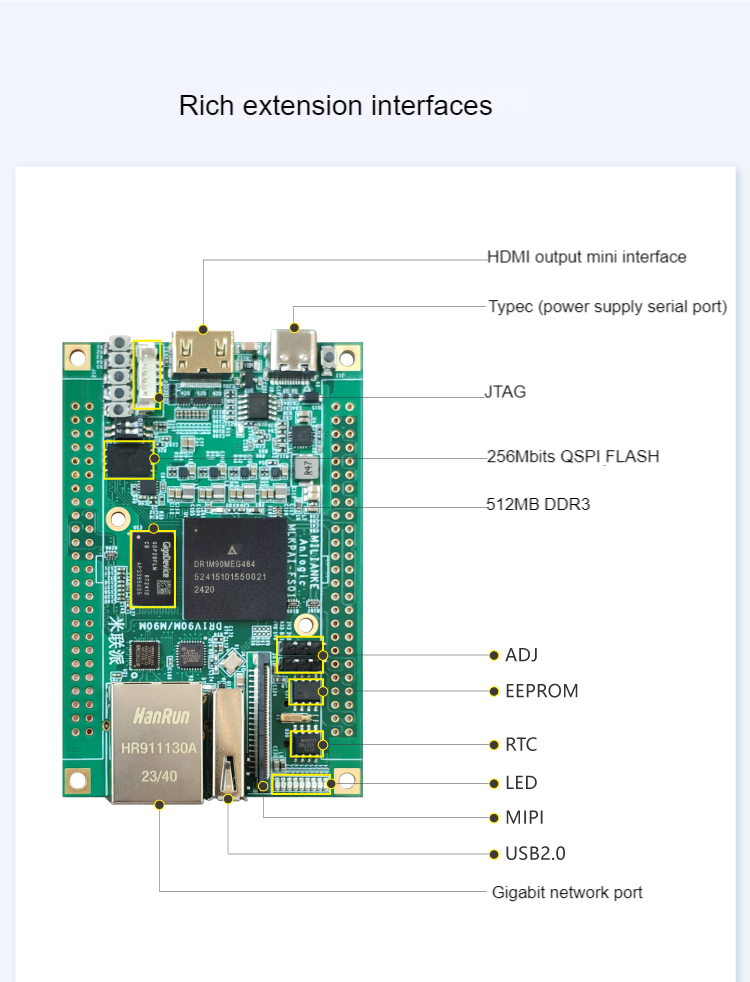

• Connectivity:

  • Gigabit Ethernet Port x1: Offers high-speed network connectivity.

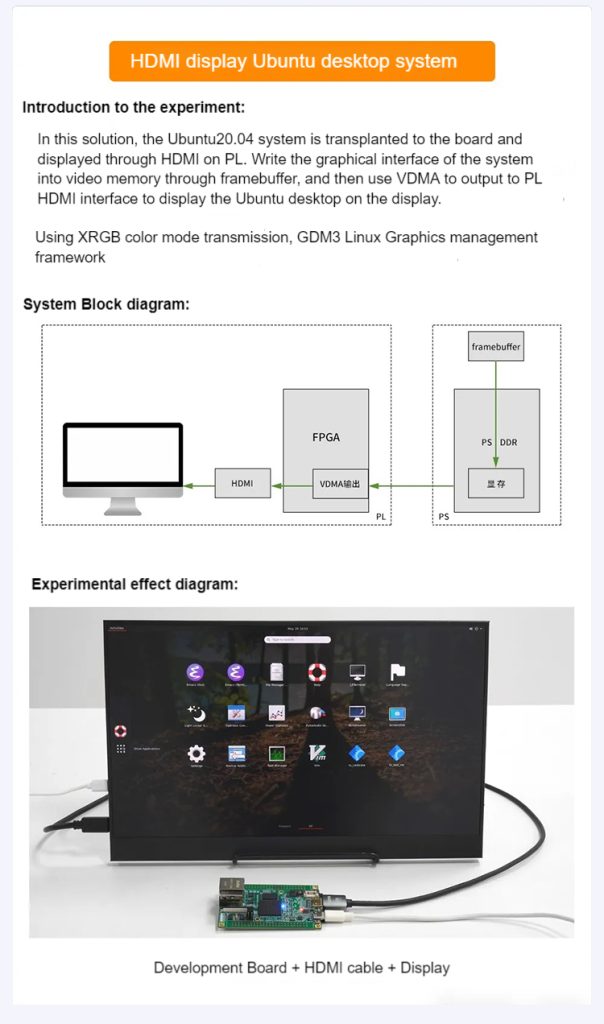

  • HDMI Output (Mini Interface) x1: Supports video output for display purposes.

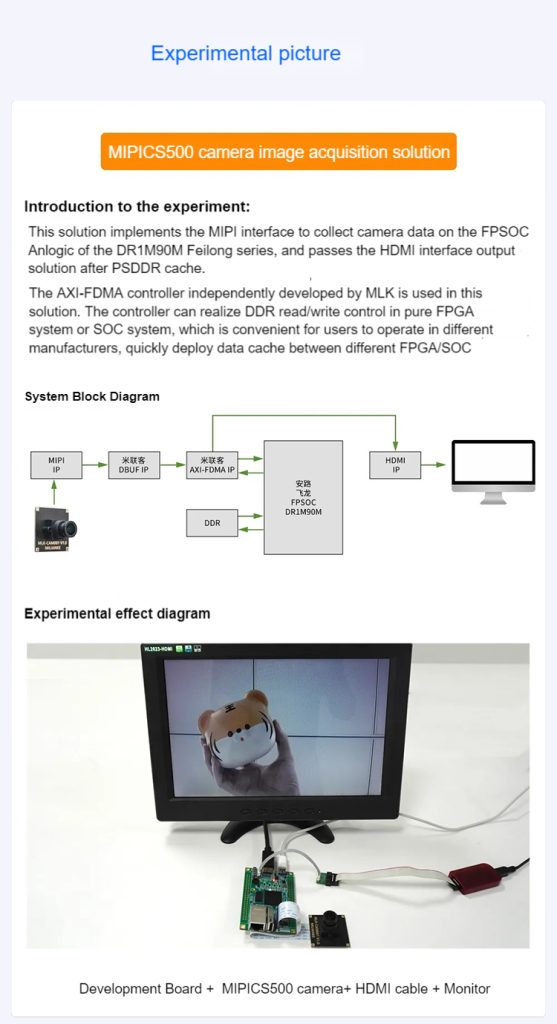

  • MIPI x1: Interface for connecting displays or cameras.

  • Type-C Interface x1: Provides versatile connectivity options.

  • JTAG x1: Used for debugging and programming.

  • USB 2.0 x1: Allows connection to various peripherals.
