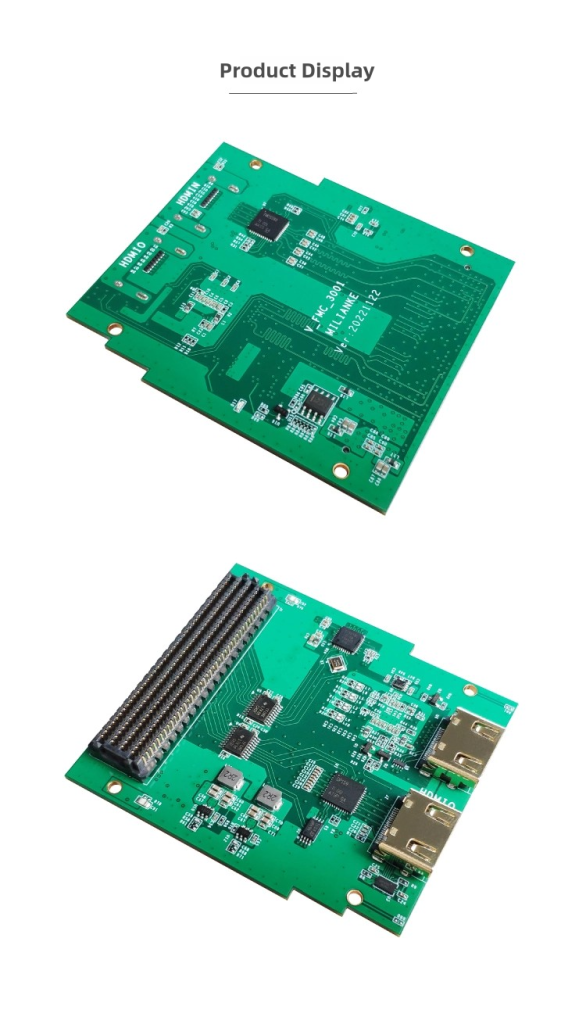

MLK-V-FMC3001

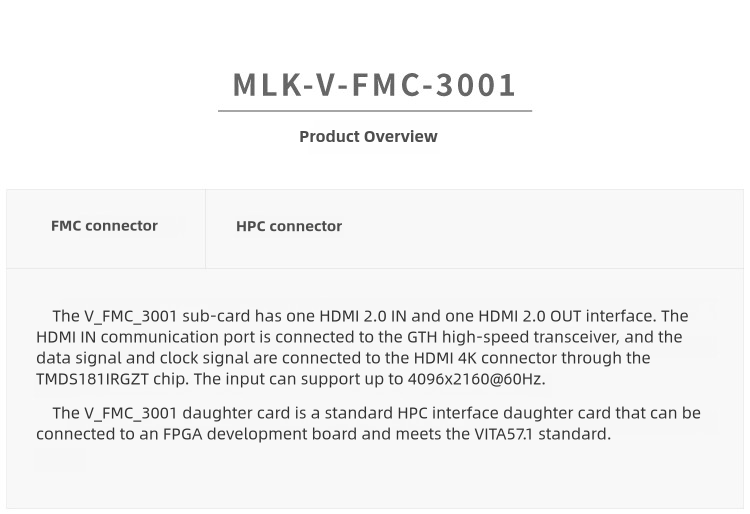

MLK-V-FMC-3001 is an FPGA development module designed for 4K HDMI video input and output. Here’s an overview of its key features:

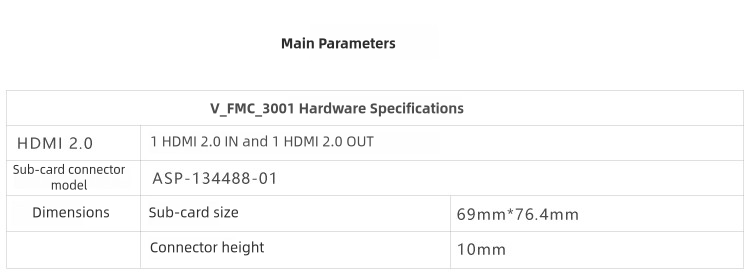

• HDMI 2.0 Interfaces: The module includes one HDMI 2.0 input and one HDMI 2.0 output interface.

• High-Speed Communication: The HDMI input port is connected to a GTH high-speed transceiver, ensuring efficient data transmission.

• TMD5181IRGZT Chip: This chip facilitates the connection of data and clock signals to the HDMI 4K connector.

• Resolution Support: The input can support resolutions up to 4096×2160 at 60Hz, making it suitable for high-definition video applications.

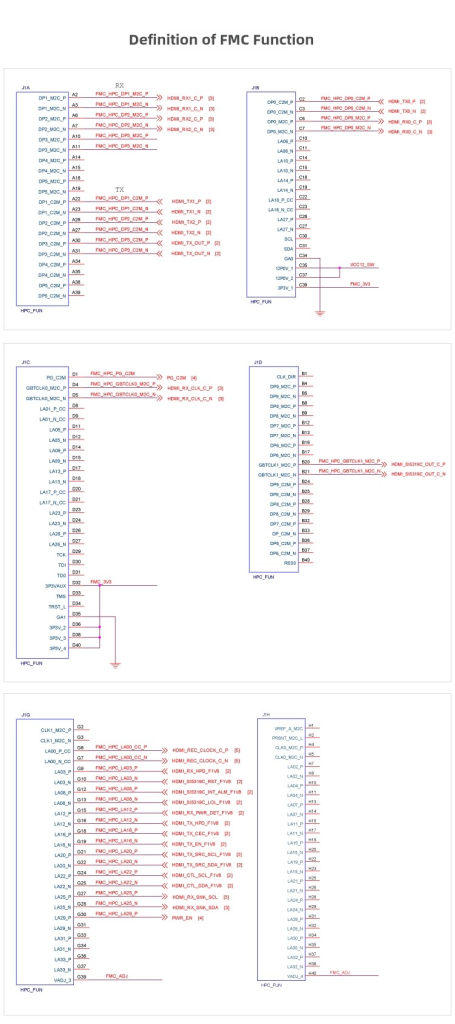

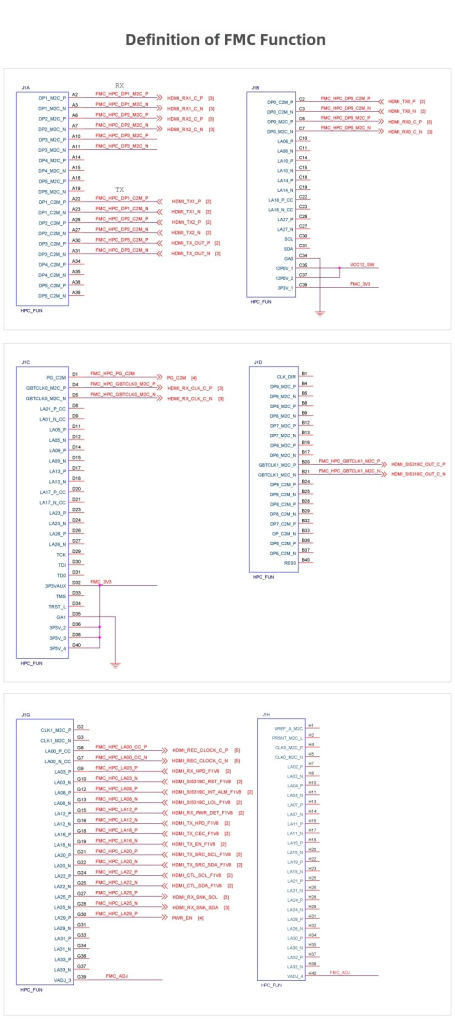

• HPC Interface: The V_FMC_3001 daughter card features a standard High Pin Count (HPC) interface, allowing it to be connected to an FPGA development board.

• Compliance: The module adheres to the VITA571 standard, ensuring compatibility and reliability in professional environments.

This module is ideal for developers working on high-performance video processing applications using FPGA technology.
