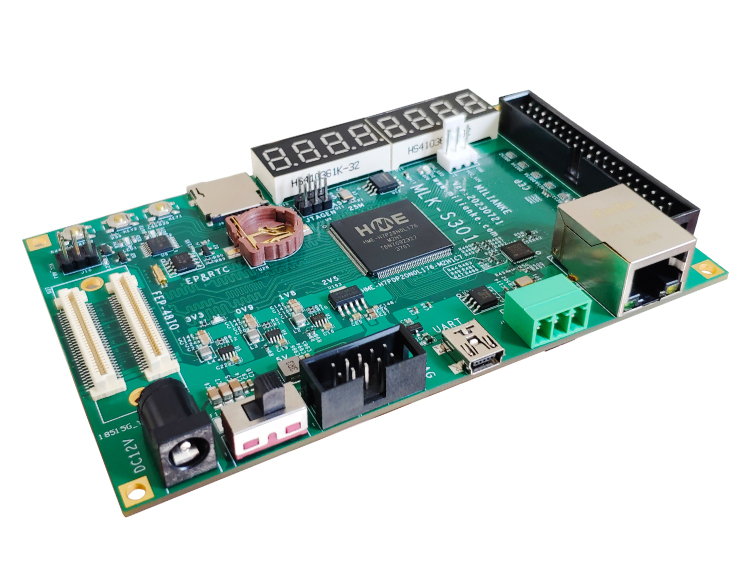

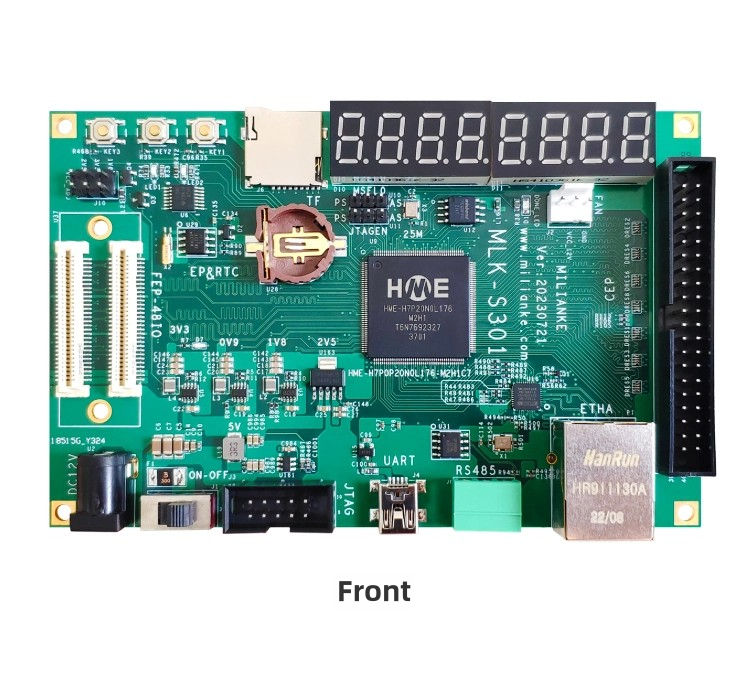

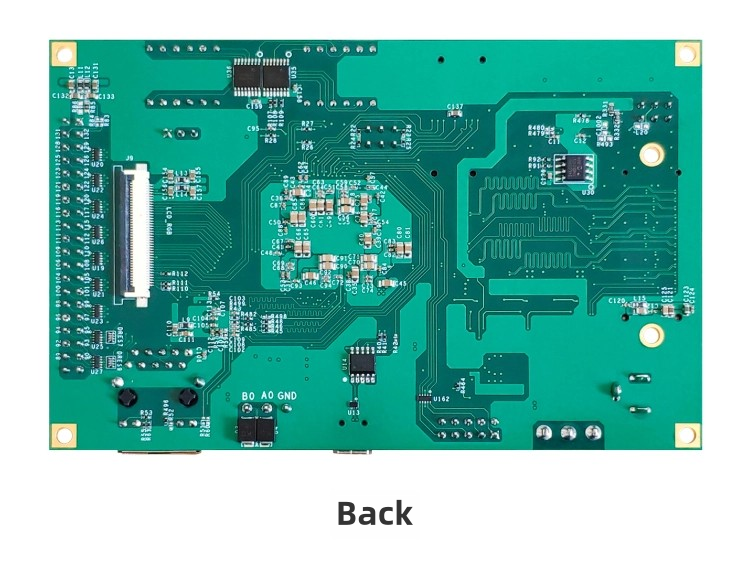

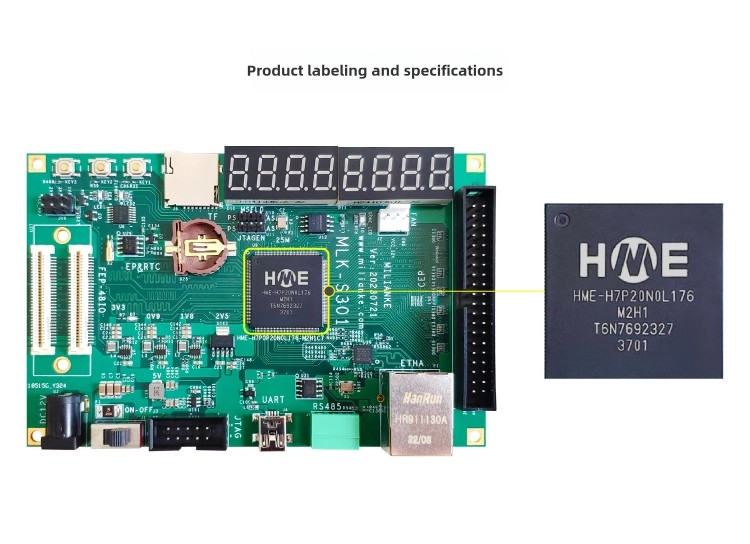

MLK-S301-HME-H7P20

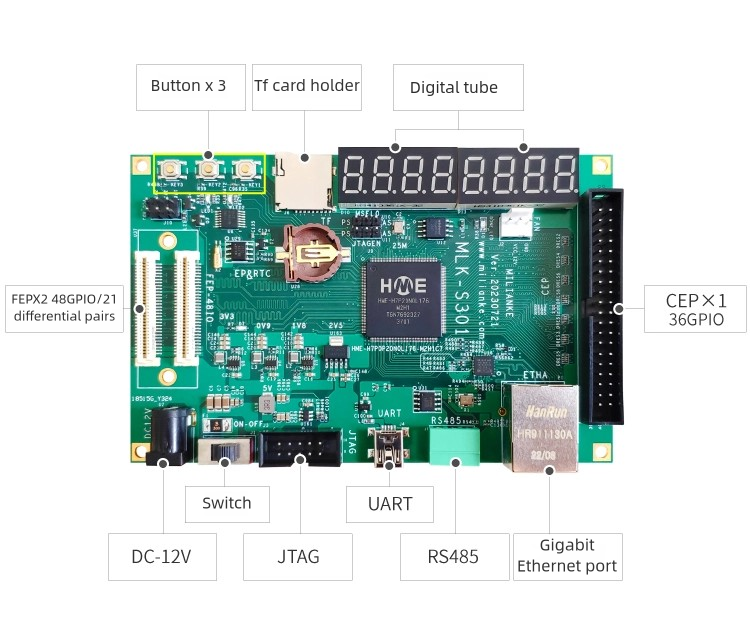

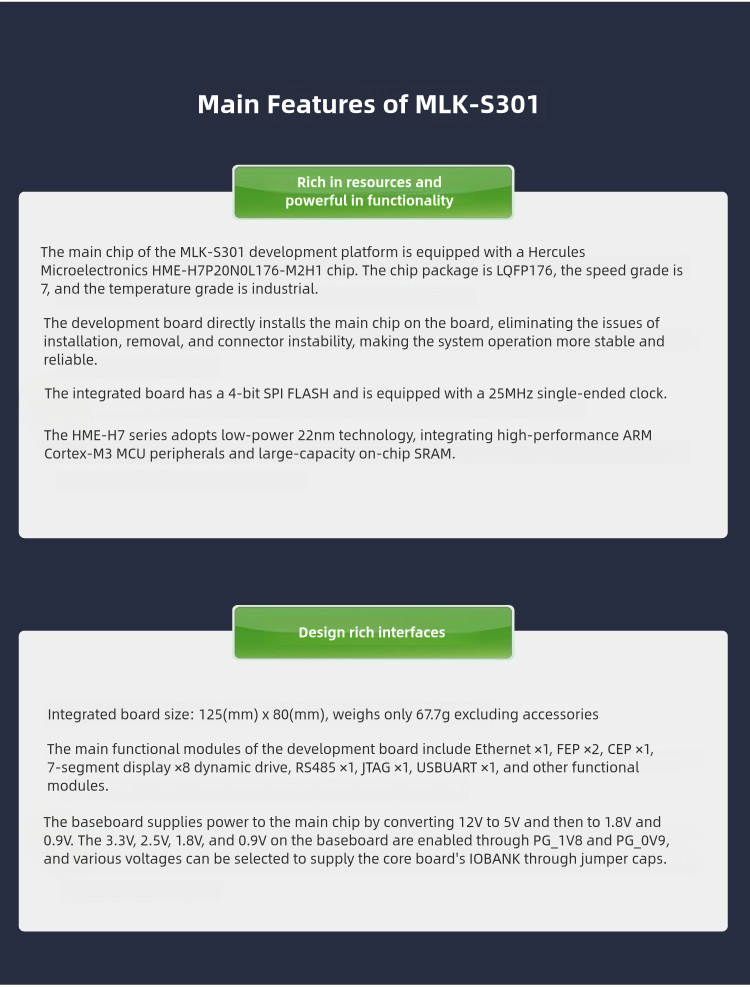

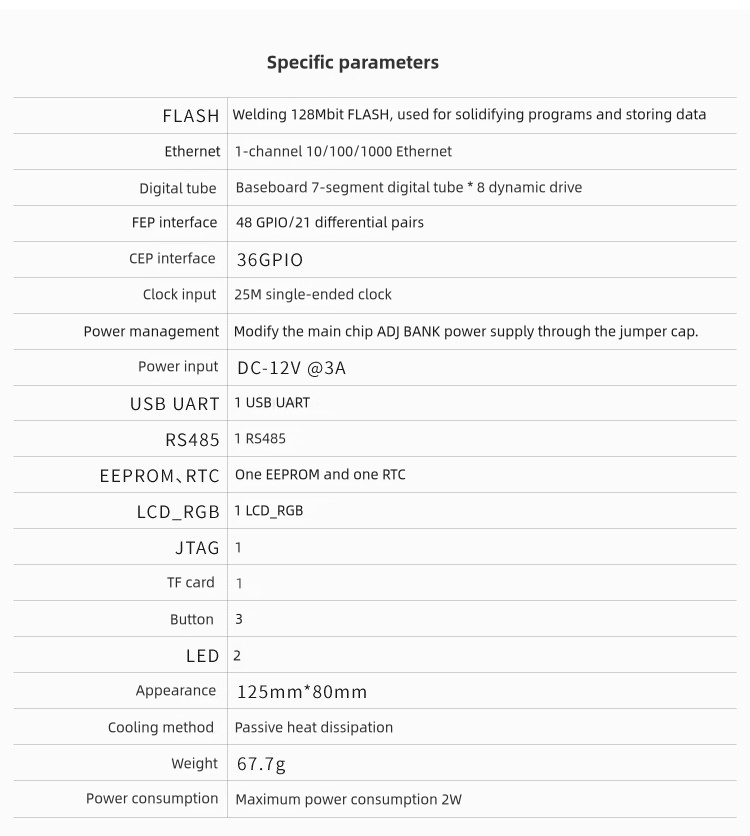

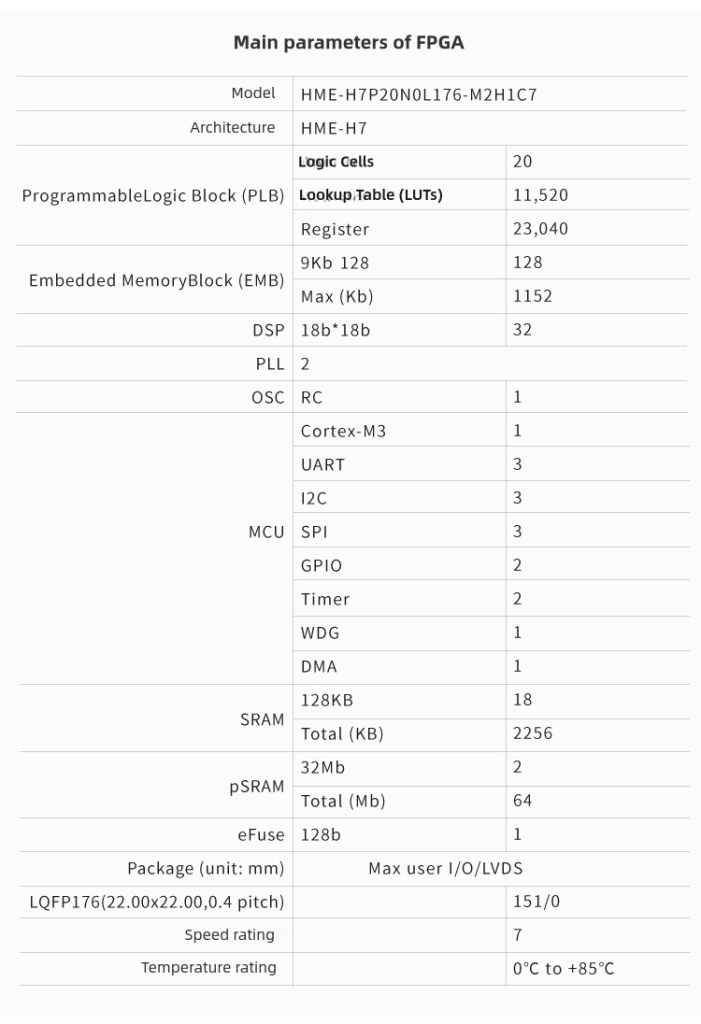

Key features and specifications of the board:

• FLASH Memory: The board is equipped with 128Mbit FLASH memory, which is used for program storage and data retention.

• Ethernet: It includes a 1-channel 10/100/1000 Ethernet interface for high-speed network connectivity.

• Digital Tube: The baseboard features an 8-segment digital tube with dynamic drive capability.

• FEP Interface: This interface provides 48 GPIO (General-Purpose Input/Output) pins and 21 differential pairs.

• CEP Interface: Offers 36 GPIO pins for additional connectivity options.

• Clock Input: A 25MHz single-ended clock input is available for timing and synchronization.

• Power Management: The main chip’s ADJ BANK power supply can be modified using a jumper cap.

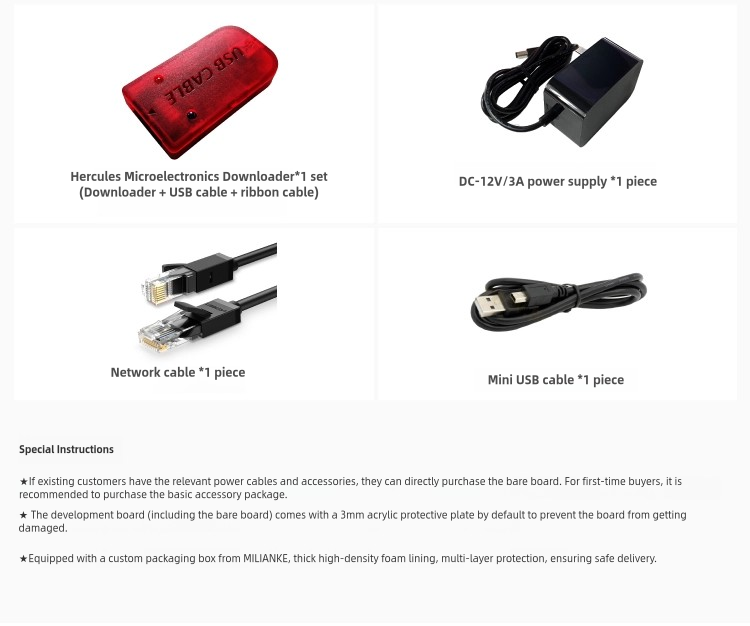

• Power Input: The board requires a DC-12V @3A power supply.

• USB UART: Includes one USB UART interface for serial communication.

• RS485: Features one RS485 interface for industrial communication protocols.

• EEPROM and RTC: The board is equipped with one EEPROM for non-volatile memory and one RTC (Real-Time Clock) for timekeeping.

• LCD_RGB: Includes one LCD_RGB interface for display connectivity.

• JTAG: One JTAG interface is available for debugging and programming.

• TF Card: The board has one TF card slot for additional storage.

• Buttons: Three buttons are provided for user input.

• LEDs: Two LEDs are included for status indication.

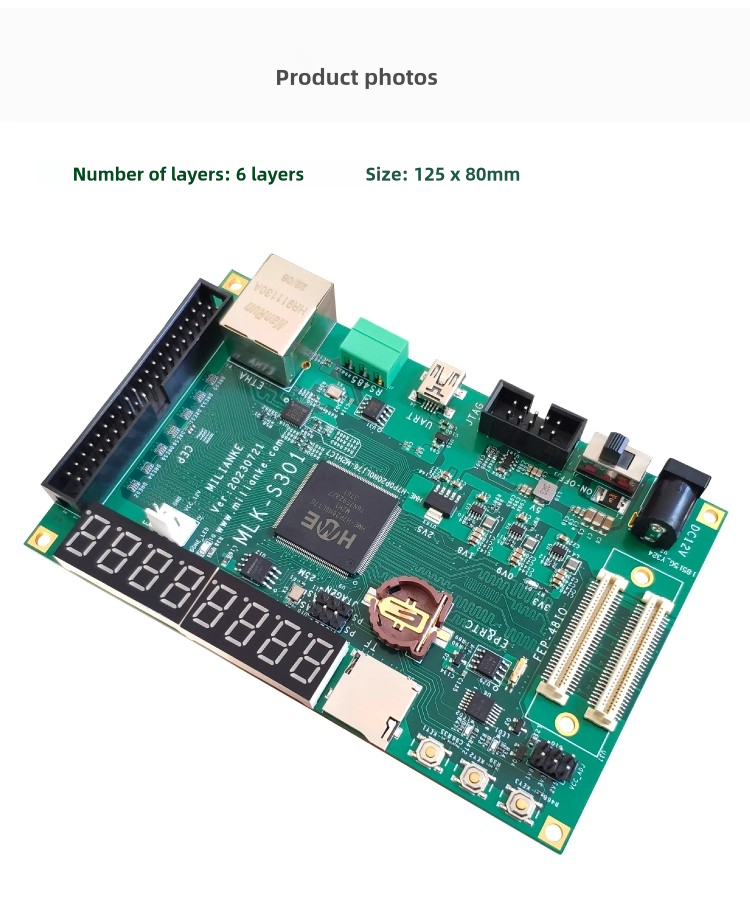

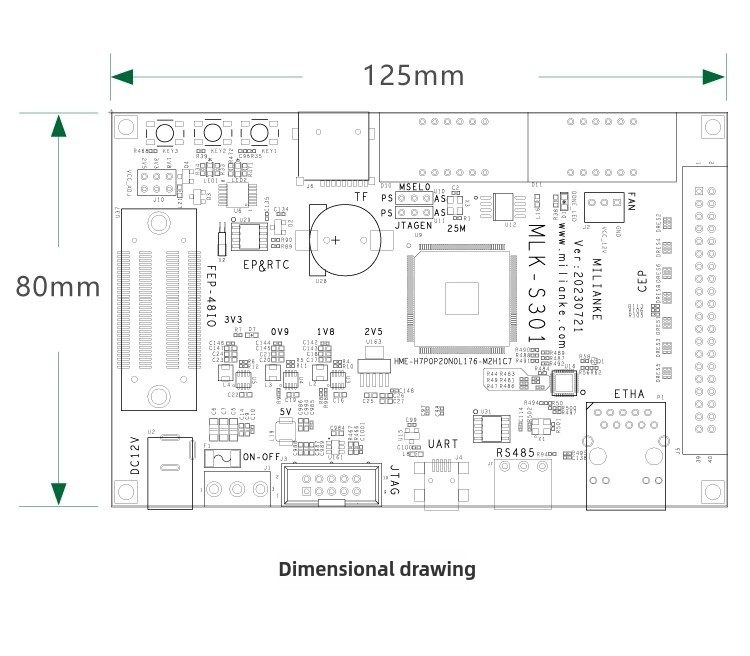

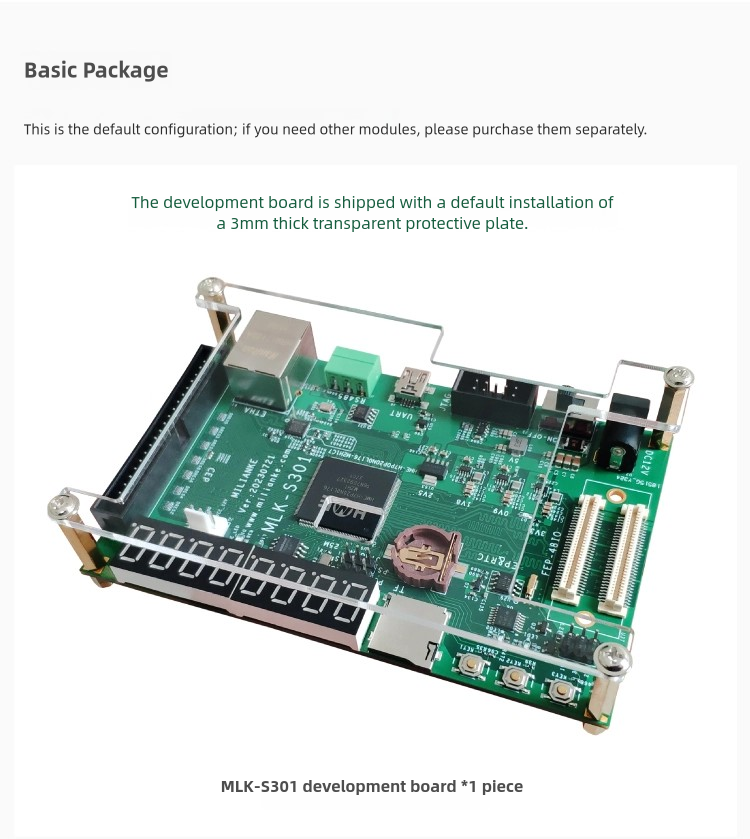

• Appearance: The board measures 125mm x 80mm.

• Cooling Method: It uses passive heat dissipation for cooling.

• Weight: The board weighs 67.7 g.

• Power Consumption: The maximum power consumption is 2W.

This development board is designed for various applications, including prototyping, testing, and development of FPGA-based projects.
