MLK-S201-AP106

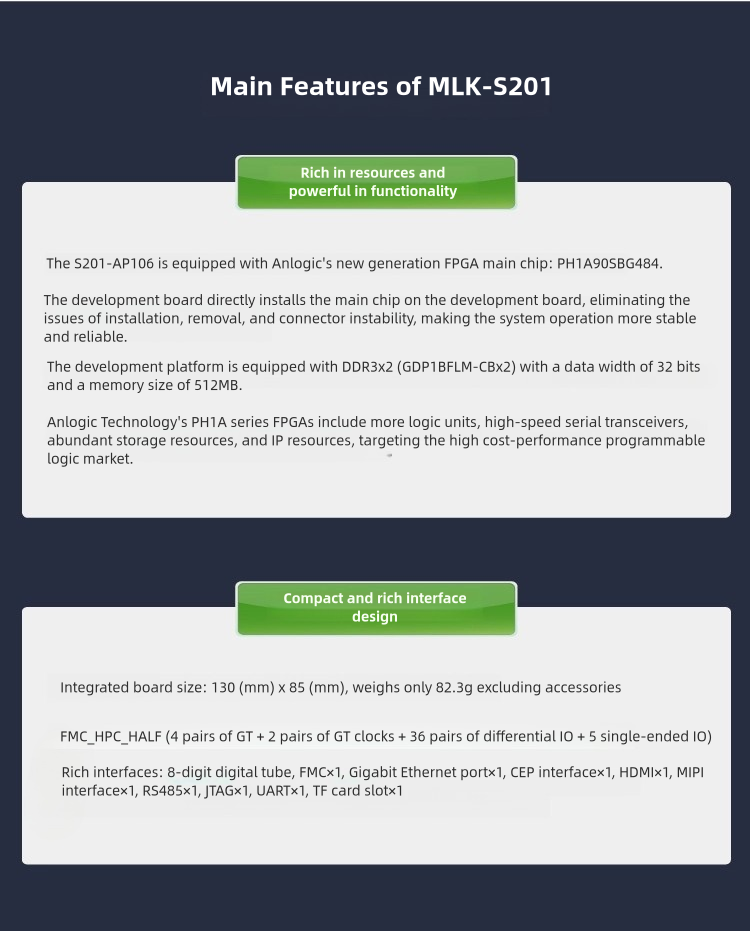

This development board is designed for high-performance applications with various connectivity options and interfaces for versatile use cases.

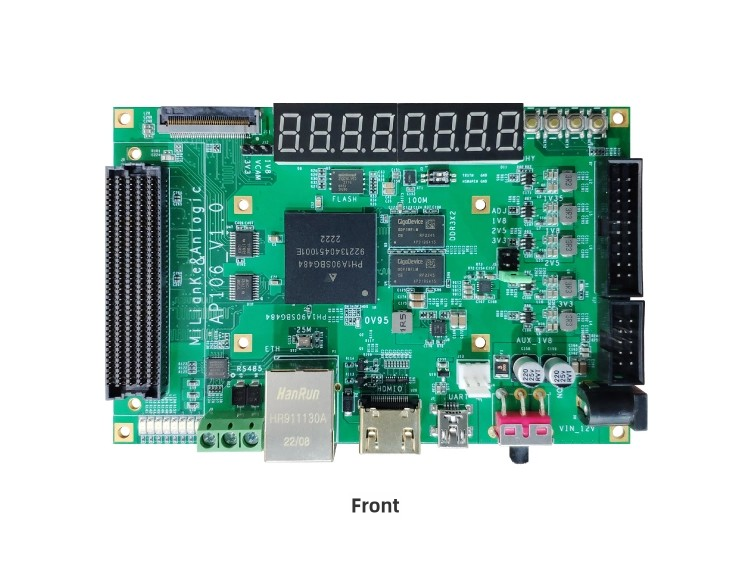

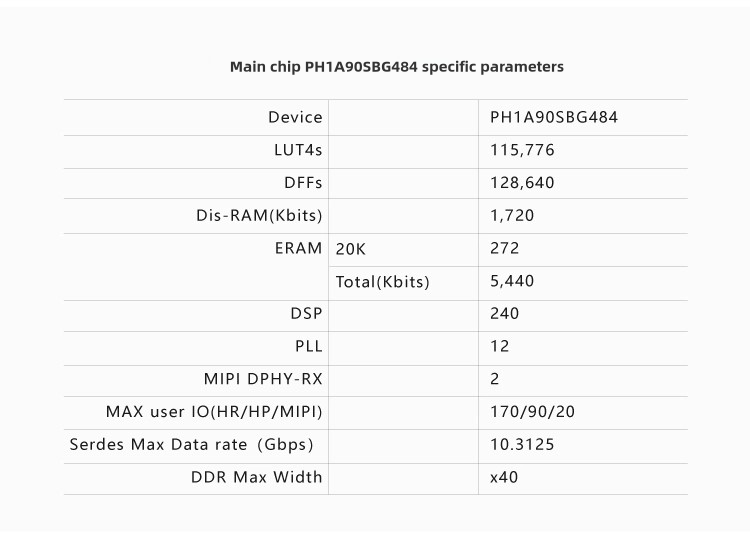

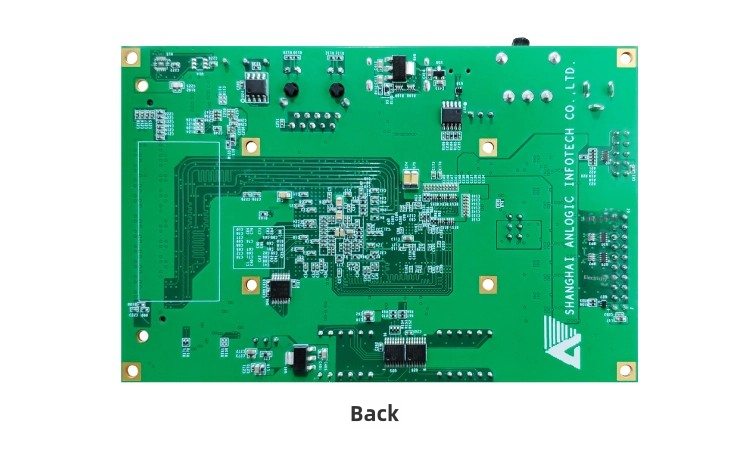

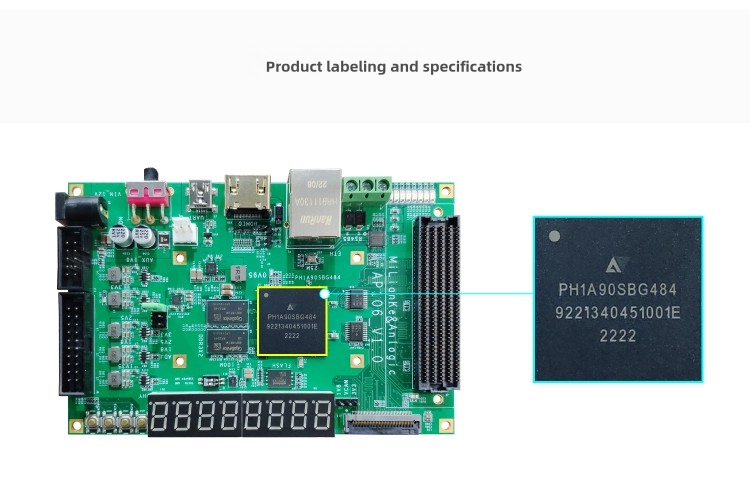

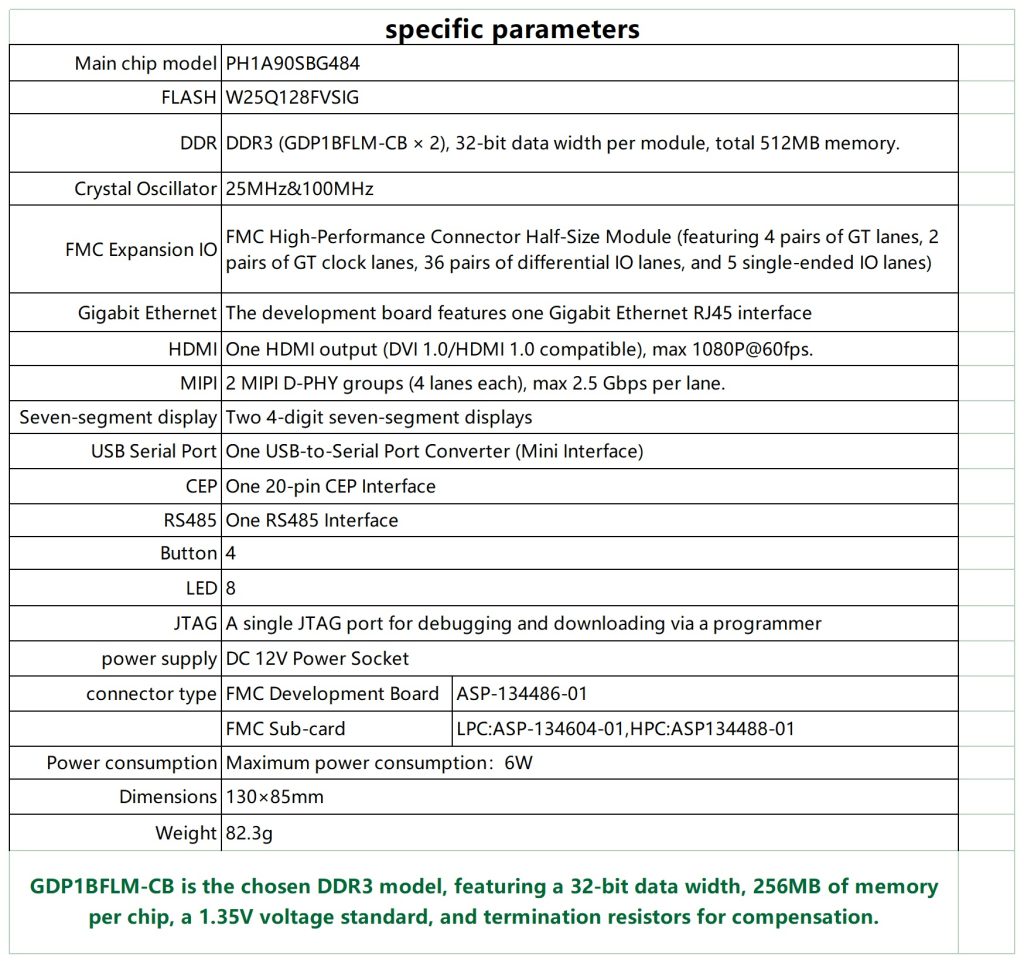

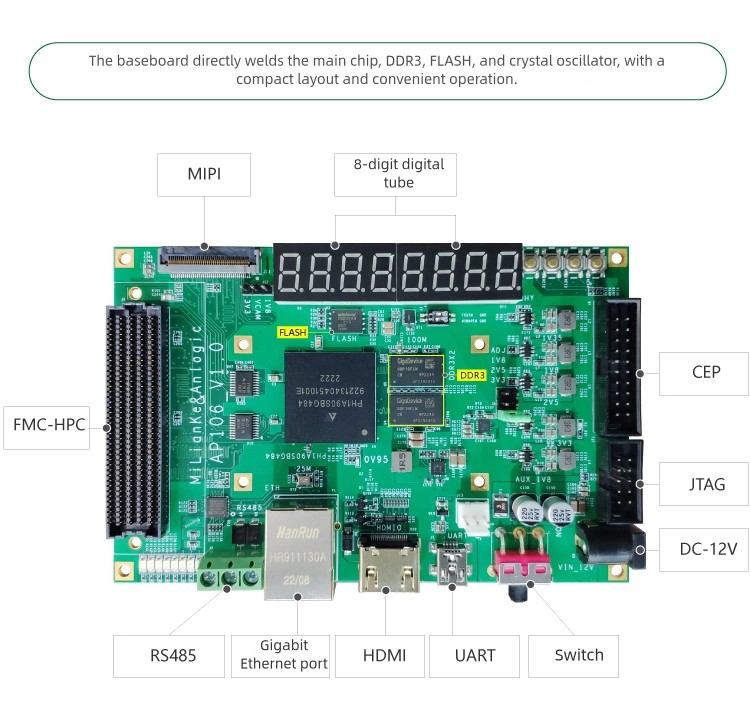

• Main Chip Model: PH1A90SBG484

• FLASH Memory: W25Q128FVSIG

• DDR Memory: DDR3 (GDP1BFLM-CB × 2), with a 32-bit data width per module, totaling 512MB of memory. Each GDP1BFLM-CB chip has 256MB, operates at 1.35V, and includes termination resistors for compensation.

• Crystal Oscillator: 25MHz and 100MHz

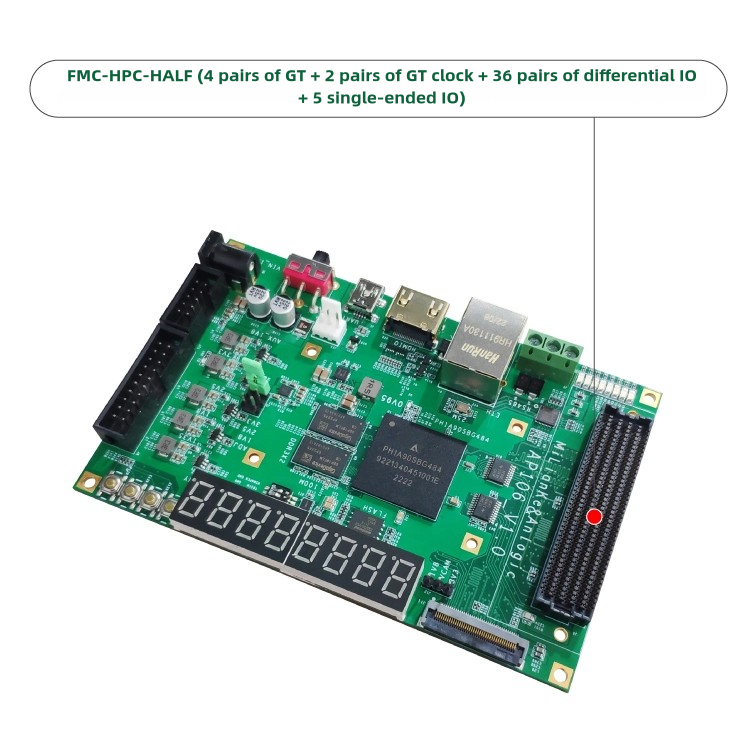

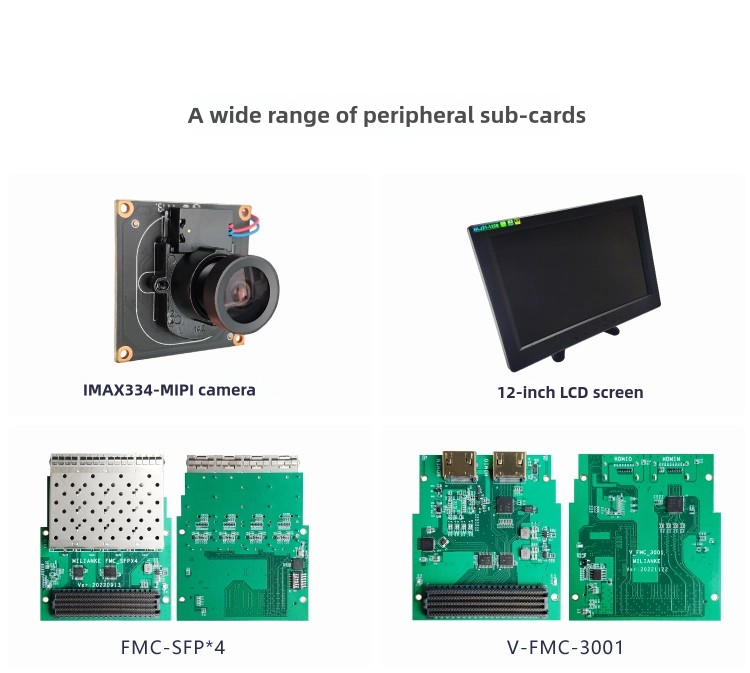

• FMC Expansion IO: Features a High-Performance Connector Half-Size Module with 4 pairs of GT lanes, 2 pairs of GT clock lanes, 36 pairs of differential IO lanes, and 5 single-ended IO lanes.

• Gigabit Ethernet: Includes one Gigabit Ethernet RJ45 interface.

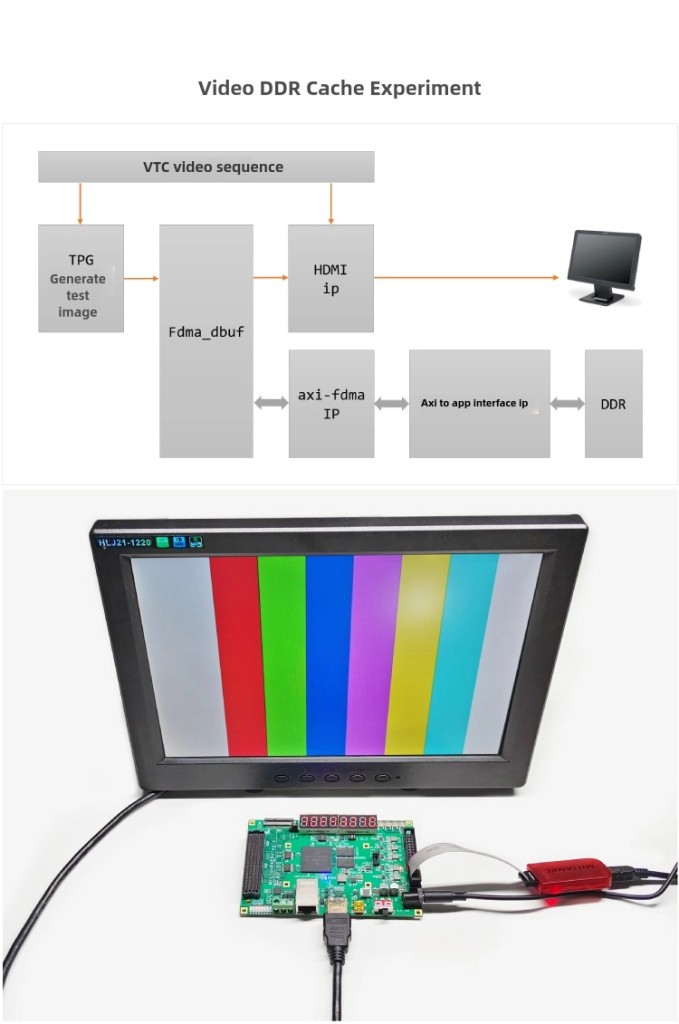

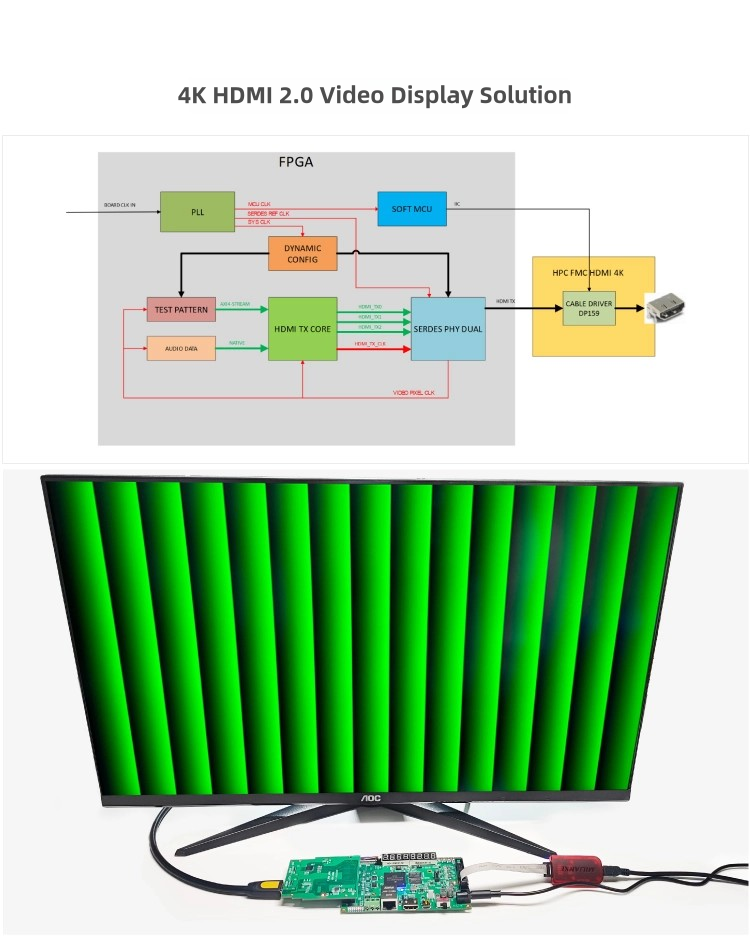

• HDMI: One HDMI output compatible with DVI 1.0/HDMI 1.0, supporting up to 1080P@60fps.

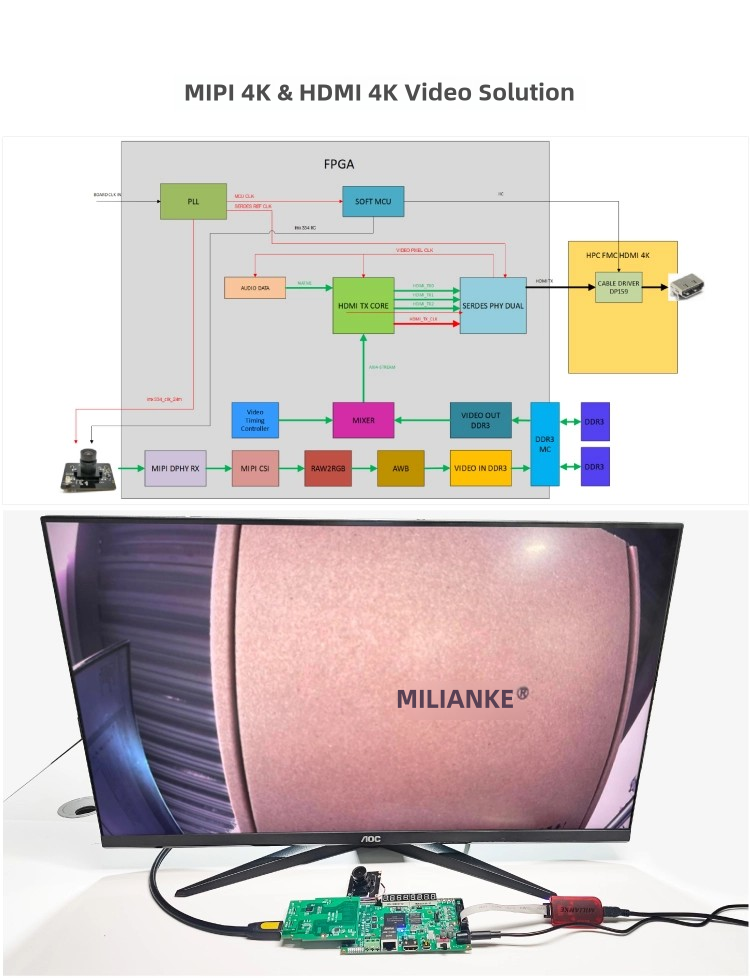

• MIPI: 2 MIPI D-PHY groups, each with 4 lanes, supporting up to 2.5 Gbps per lane.

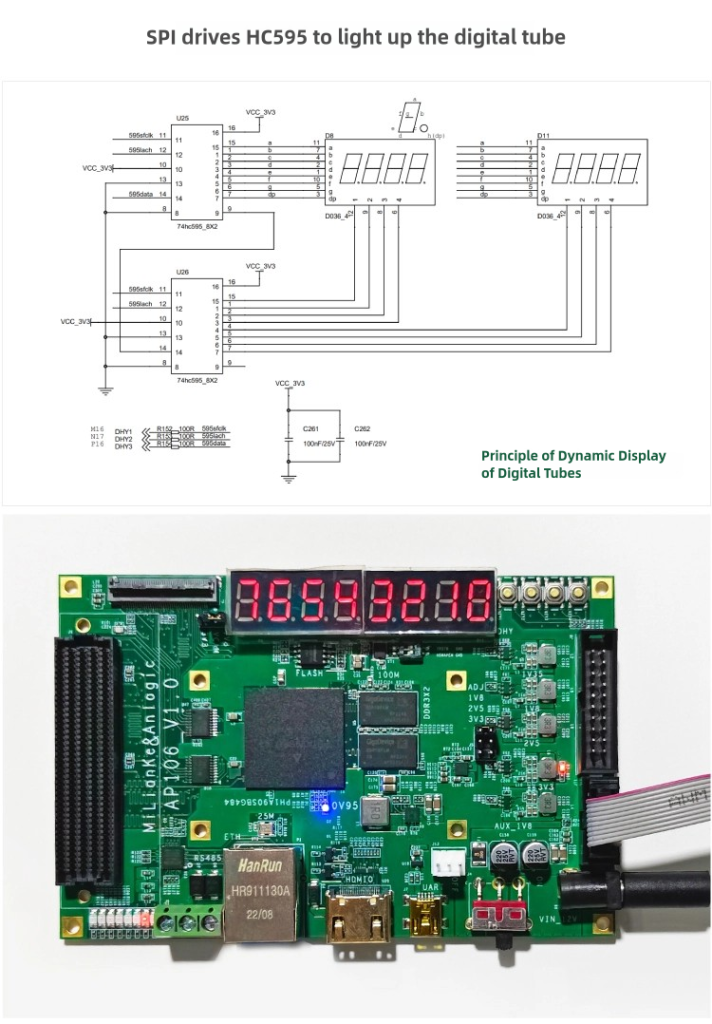

• Seven-Segment Display: Two 4-digit seven-segment displays.

• USB Serial Port: One USB-to-Serial Port Converter with a Mini Interface.

• CEP: One 20-pin CEP Interface.

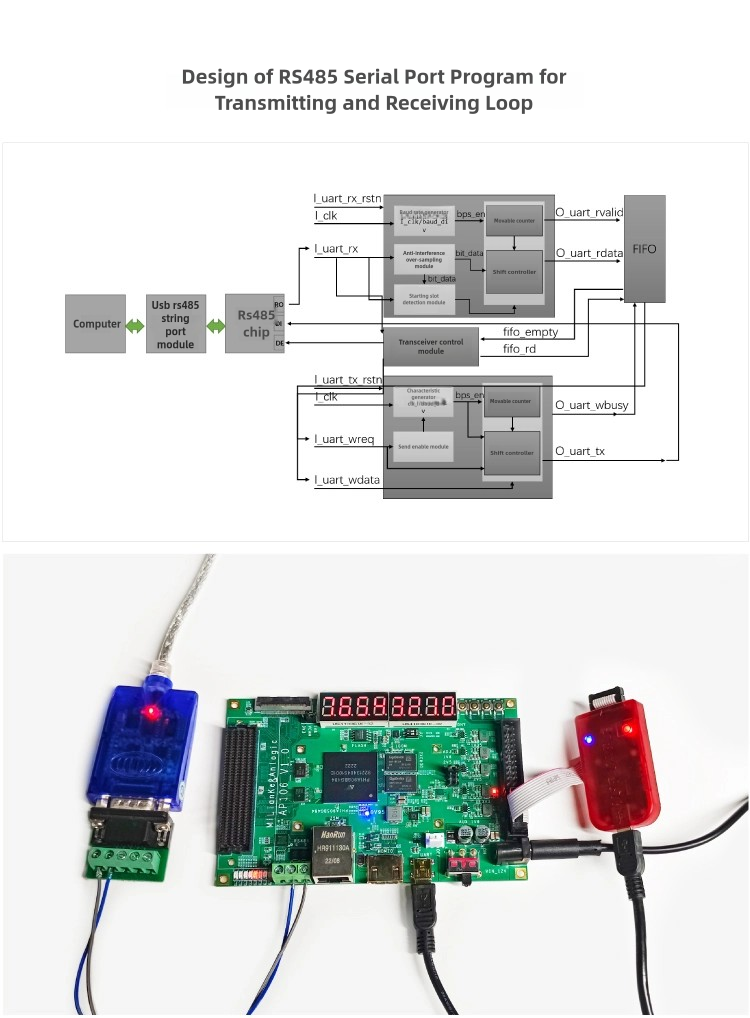

• RS485: One RS485 Interface.

• Buttons: 4 buttons.

• LEDs: 8 LEDs.

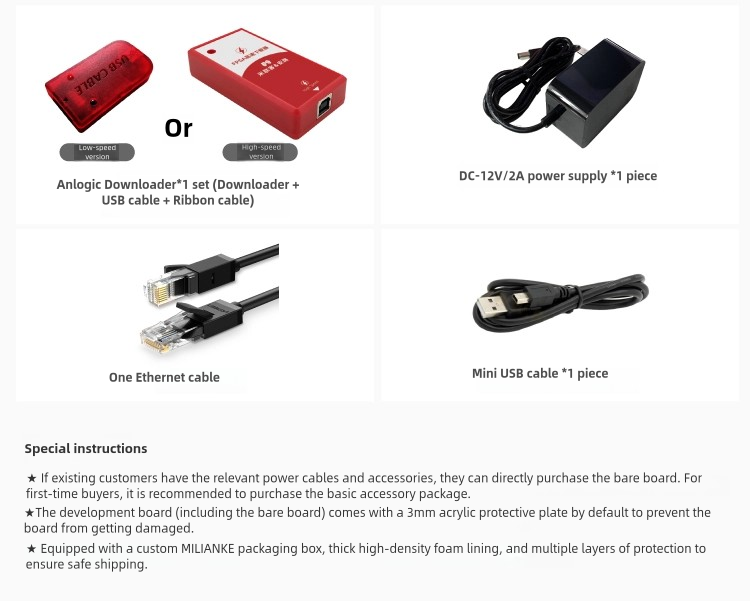

• JTAG: A single JTAG port for debugging and downloading via a programmer.

• Power Supply: DC 12V Power Socket.

• Connector Type: FMC Development Board (ASP-134486-01) with FMC Sub-card options (LPC:ASP-134604-01 , HPC:ASP134488-01 ).

• Power Consumption: Maximum power consumption of 6W.

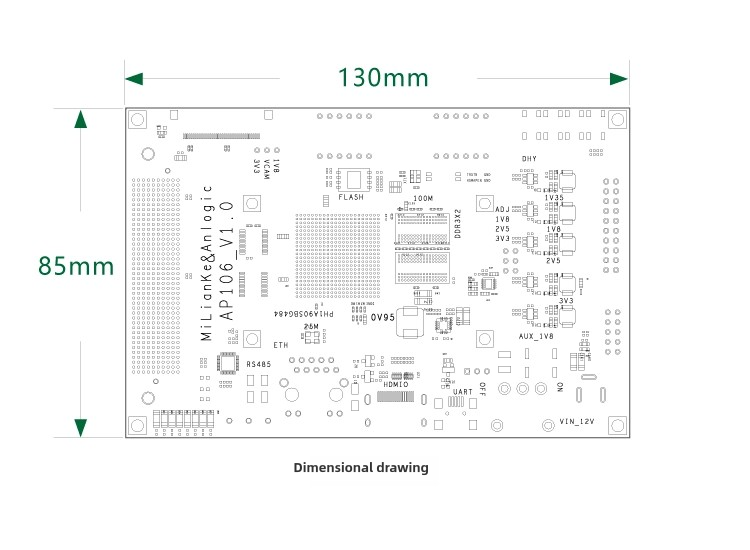

• Dimensions: 130×85mm.

• Weight: 82.3g.
