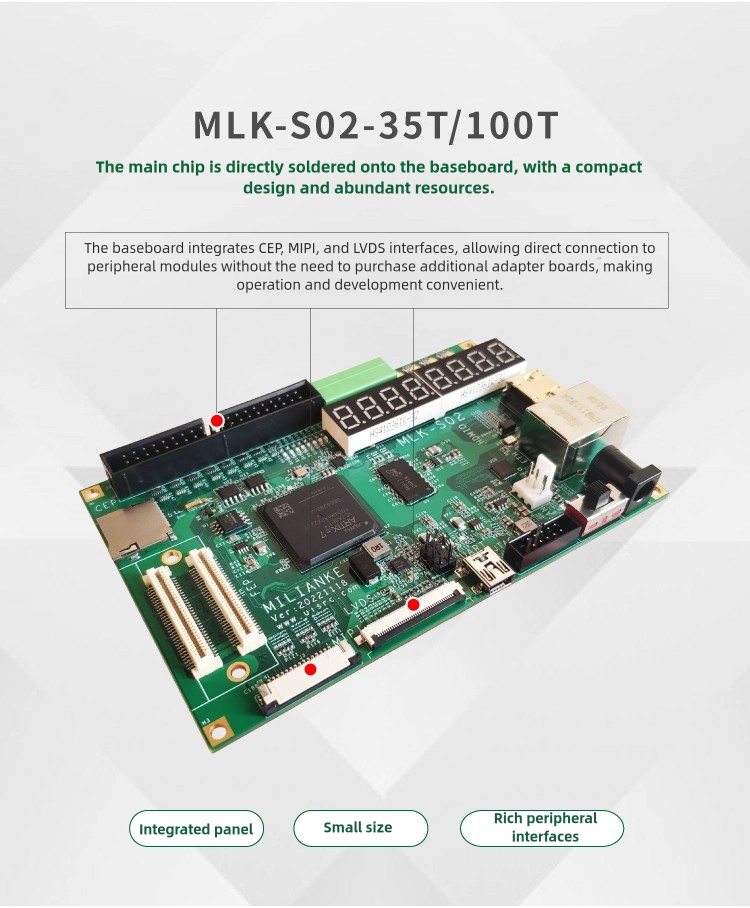

MLK-S02-Artix-7 35T 100T

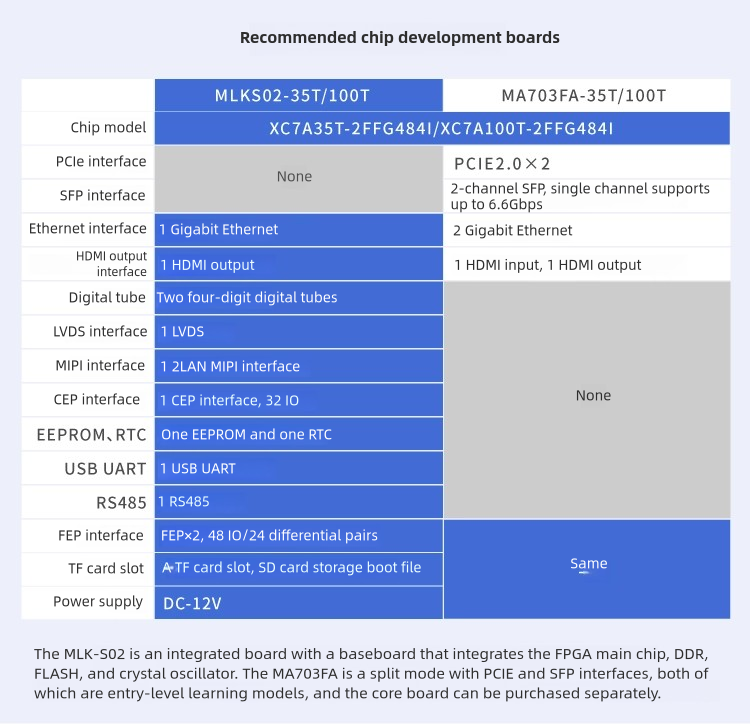

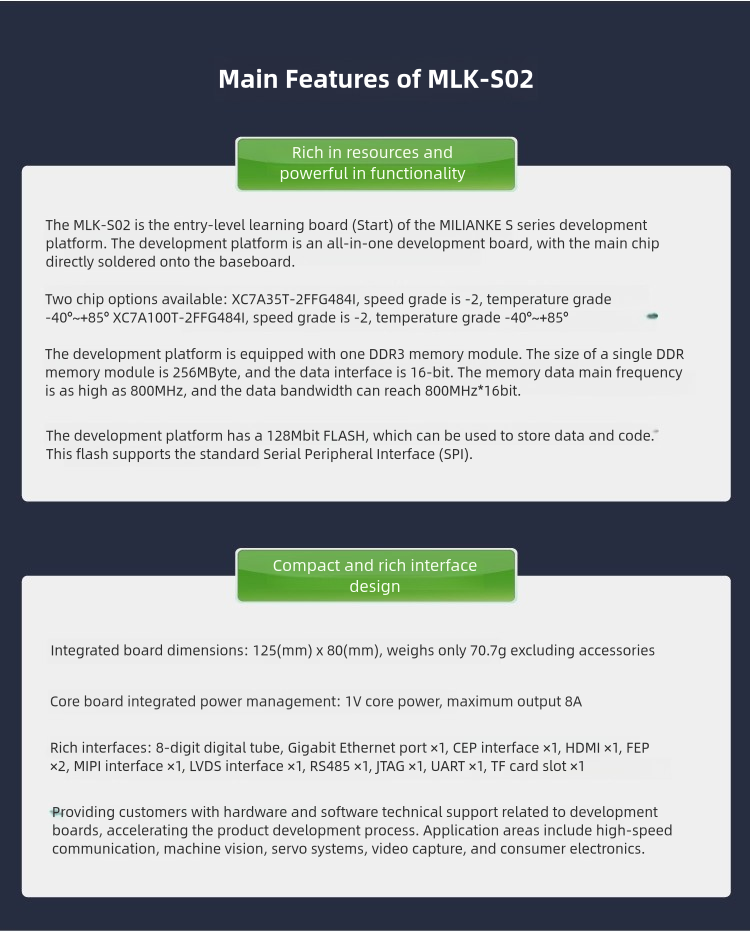

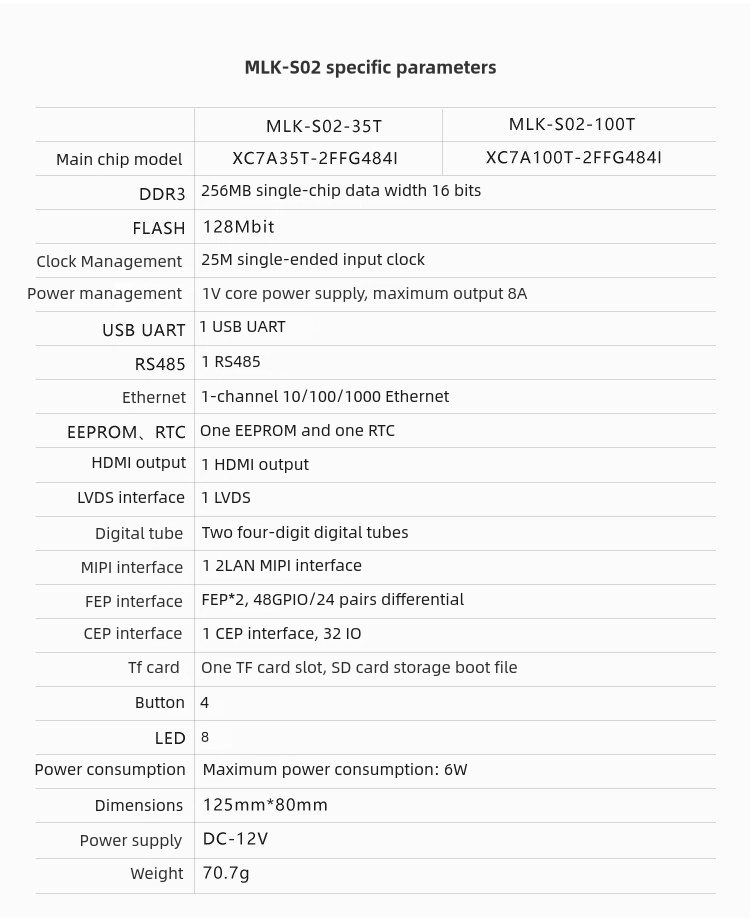

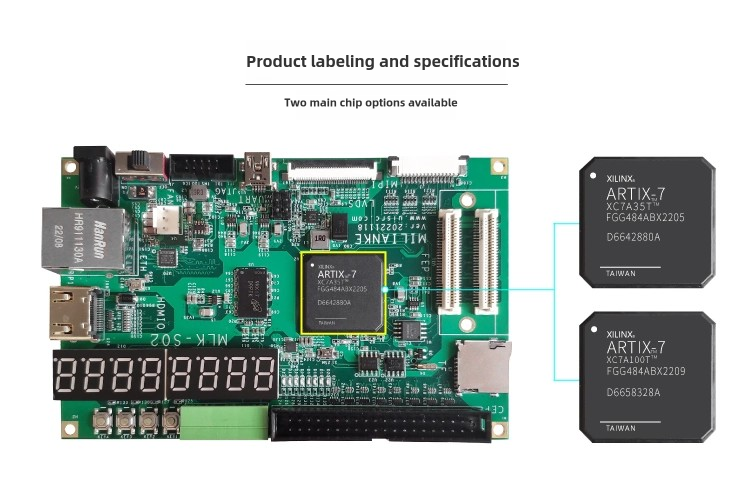

Model Variants: The board comes in two variants based on the main chip model: MLK-S02-35T with XC7A35T-2FFG484I and MLK-S02-100T with XC7A100T-2FFG484I.

Memory: It includes 256MB DDR3 with a 16-bit data width and 128Mbit FLASH memory.

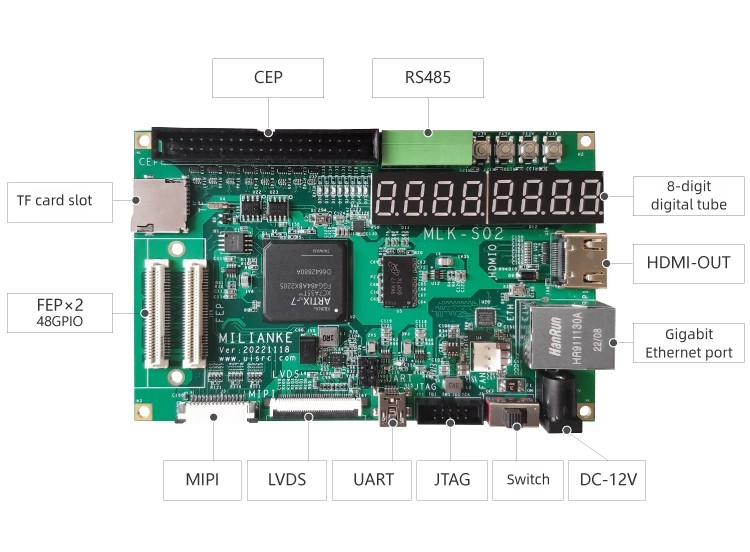

Connectivity:

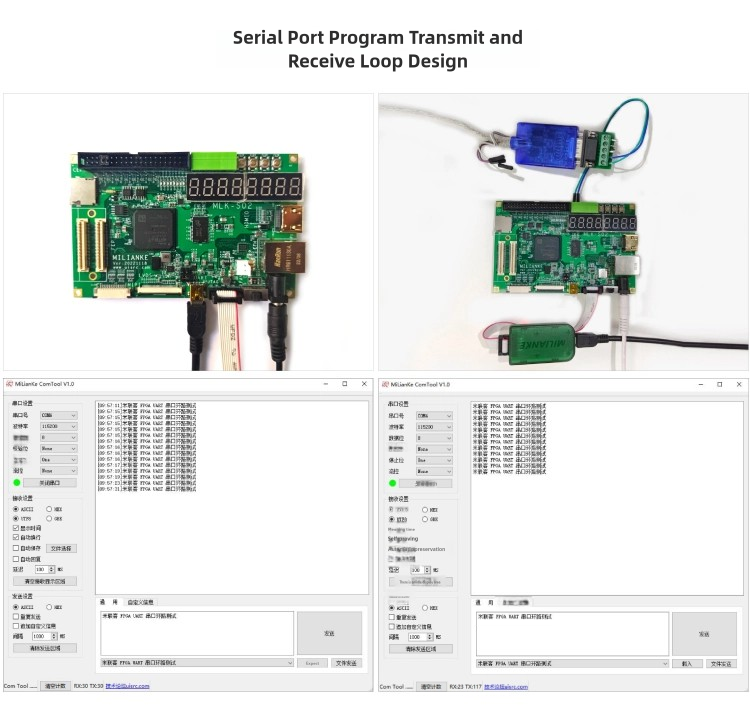

• 1 USB UART

• 1 RS485

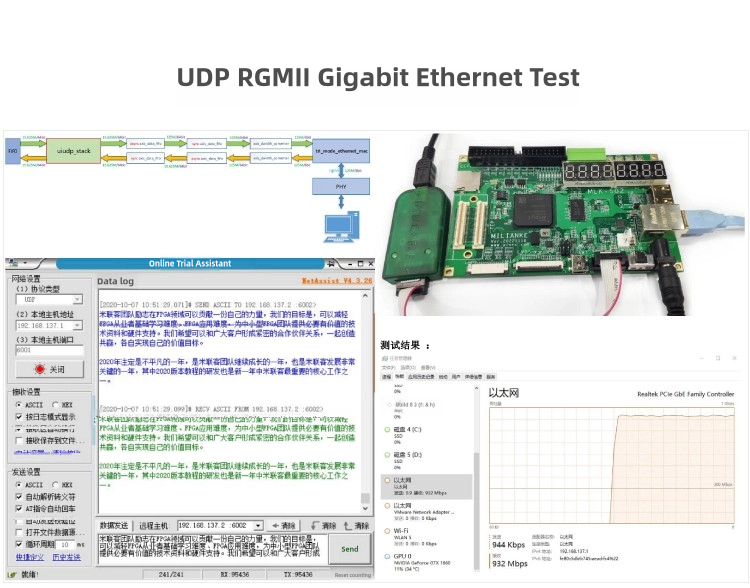

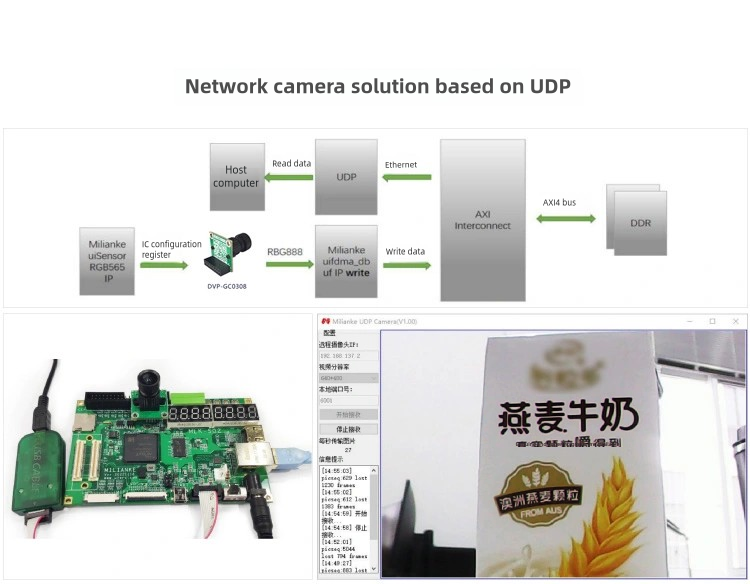

• 1-channel 10/100/1000 Ethernet

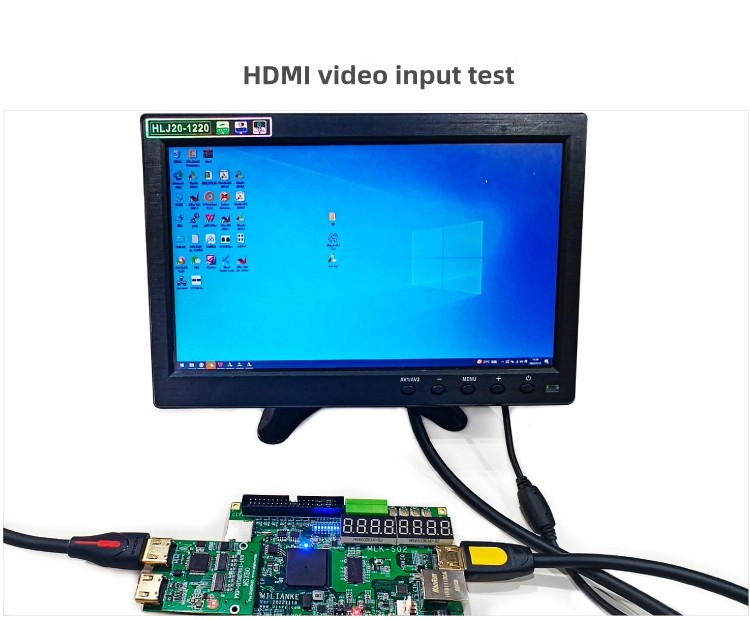

• 1 HDMI output

• 1 LVDS interface

• 12LAN MIPI interface

• FEP interface with 48 GPIO/24 differential pairs

• 1 CEP interface with 32 IO

Storage: Includes a TF card slot for SD card storage boot files.

User Interface:

• 4 buttons

• 8 LEDs

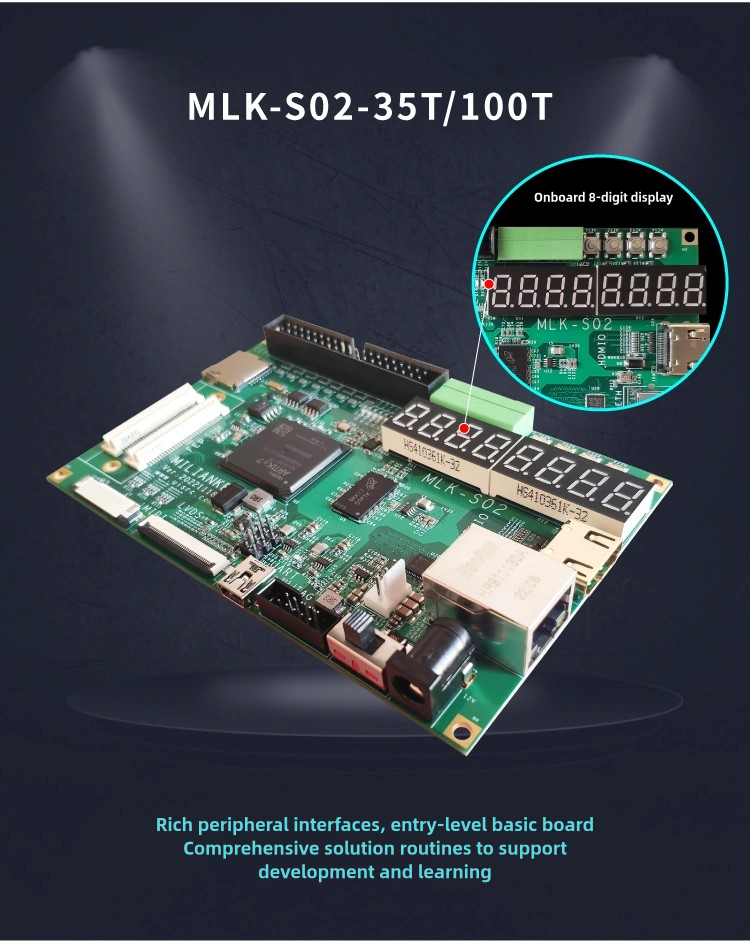

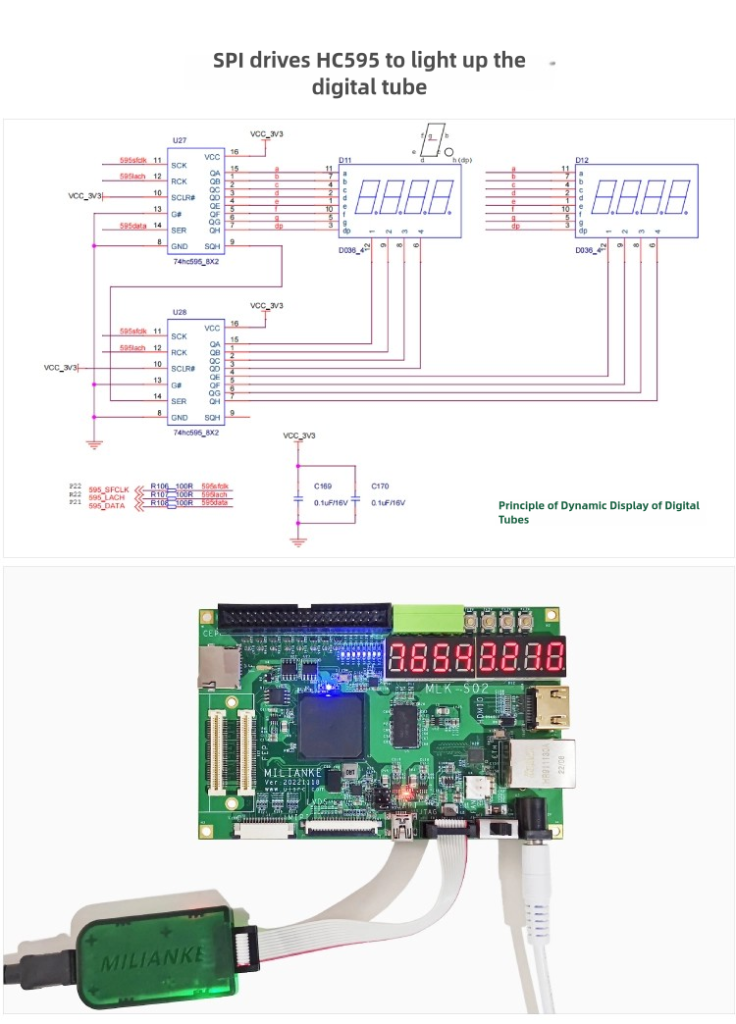

• Two four-digit digital tubes

Additional Features:

• 1 EEPROM and 1 RTC

• Maximum power consumption of 6W

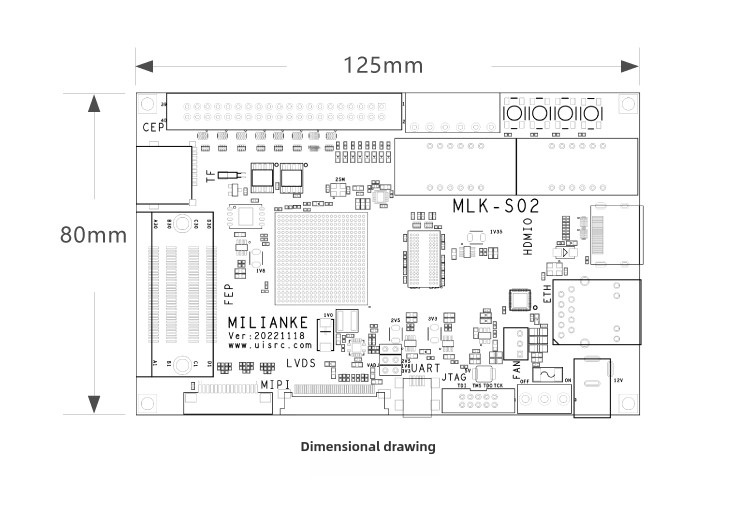

Physical Dimensions: 125mm x 80mm, weighing 70.7g.

Power Supply: DC-12V.
