MLK-H8-KU5P AU15P

MLK-H8-KU5P AU15P Overview

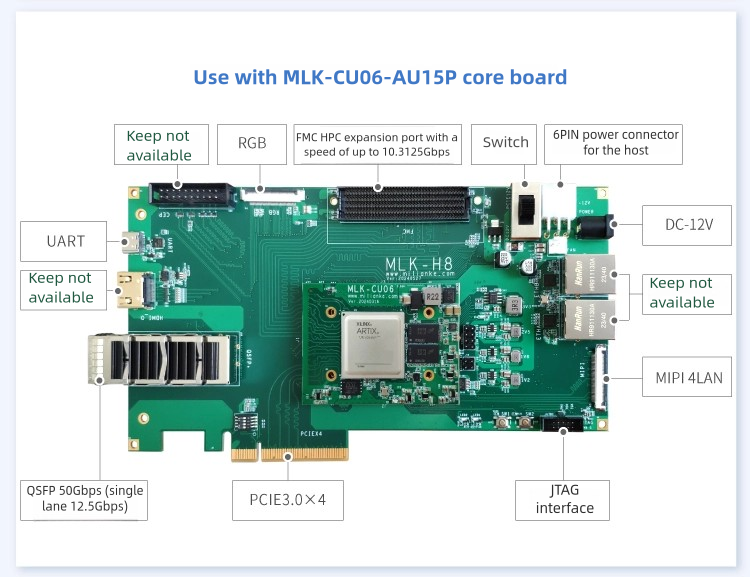

The MLK-H8-KU5P AU15P is a high-performance development board designed to be used in conjunction with the MLK-CU06-AU15P Core Board. It is tailored for advanced applications requiring high-speed data processing, networking, and FPGA-based development.

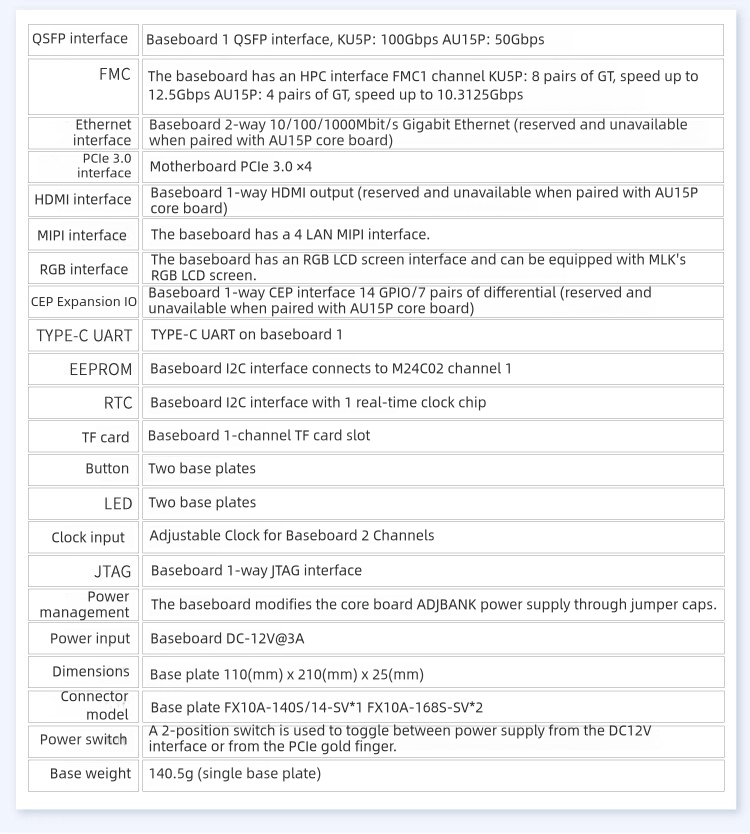

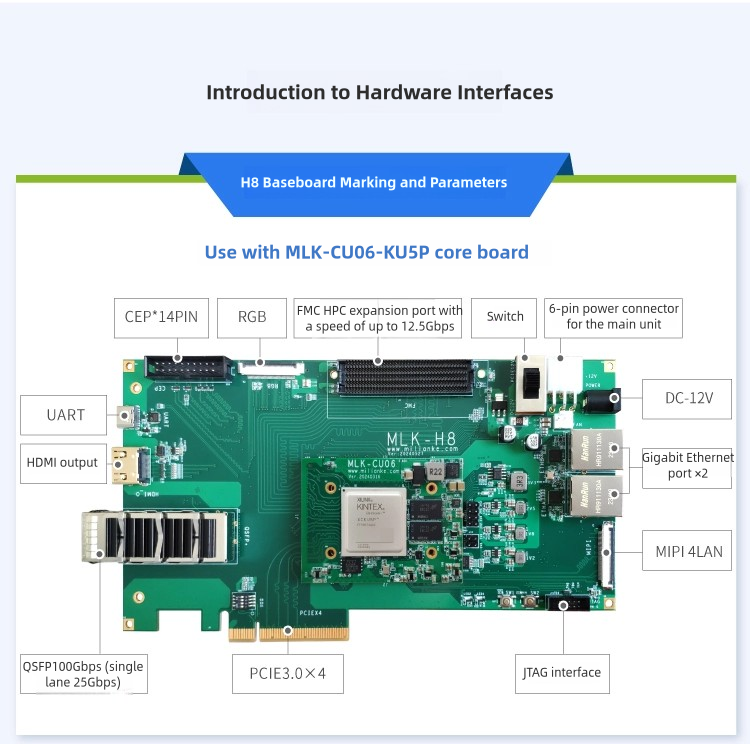

Key Features and Specifications

1. Compatibility:

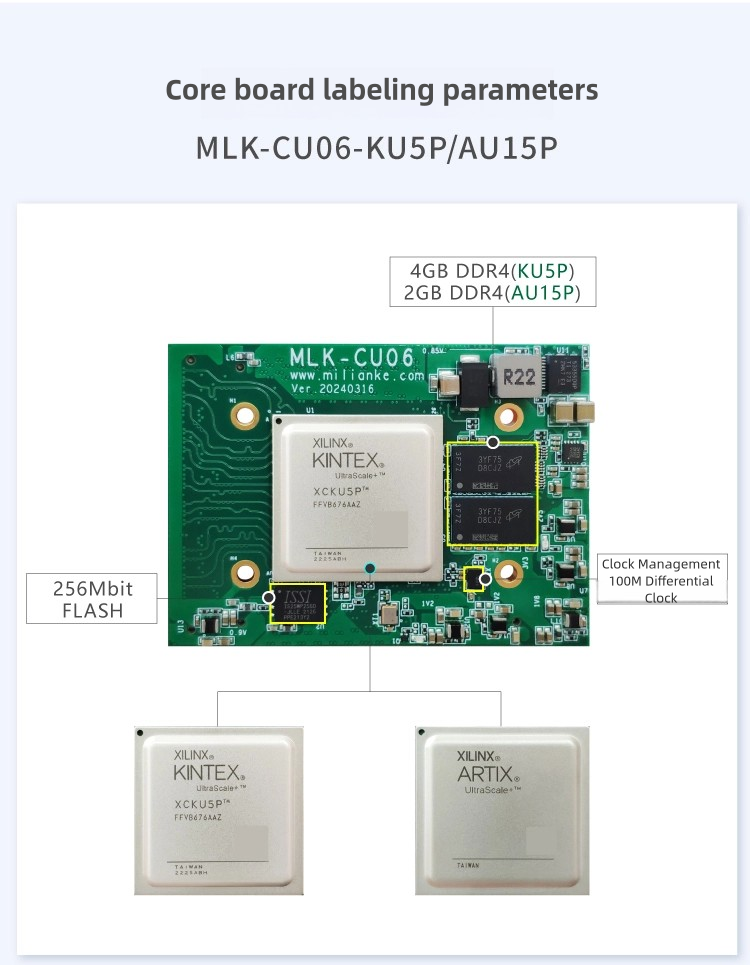

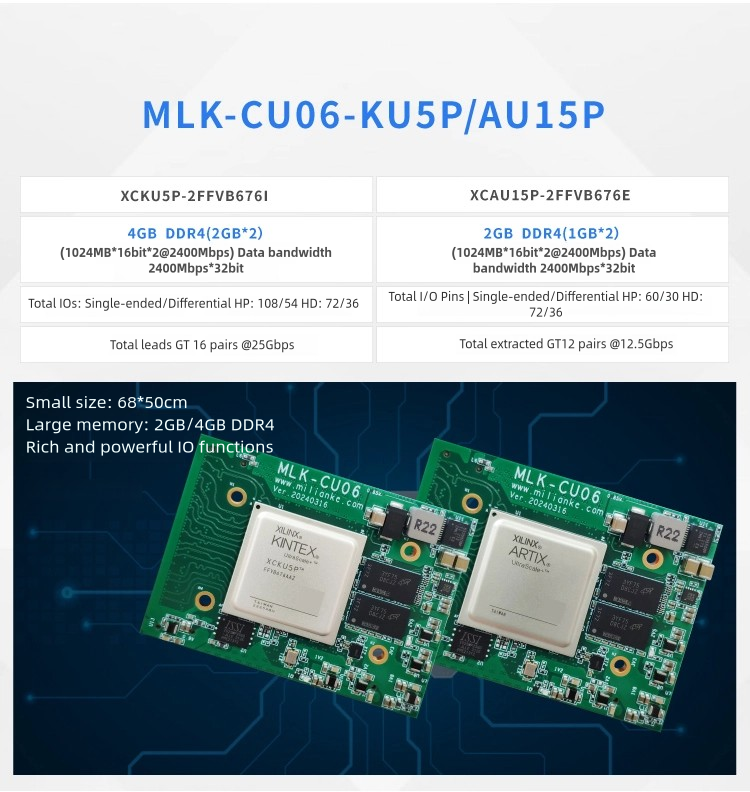

   • Designed to work with the MLK-CU06-AU15P Core Board.

2. RGB Interface:

   • Supports high-speed RGB data transmission with rates up to 10.3125 Gbps.

3. FMC HPC Expansion Port:

   • Provides a high-pin-count (HPC) FMC interface for additional expansion and connectivity options.

4. Power Supply:

   • DC-12V power input via a 6-pin host power interface.

5. UART Interface:

   • Includes a UART interface for serial communication.

6. High-Speed Networking:

   • QSFP28 interface supporting 50 Gbps (12.5 Gbps per lane).

7. PCIe Interface:

   • PCIe 3.0 x4 interface for high-speed data transfer and expansion.

8. JTAG Interface:

   • Includes a JTAG interface for debugging and programming.

Applications

The MLK-H8-KU5P AU15P is ideal for a variety of high-performance applications, including:

• High-Speed Data Processing: Suitable for applications requiring rapid data transfer and processing.

• Networking: Ideal for high-speed networking and communication systems.

• FPGA Development: Perfect for prototyping and developing FPGA-based solutions.

• Industrial Automation: Can be used in industrial control and automation systems.

Advantages

• High-Speed Connectivity: Supports high-speed interfaces like QSFP28 and PCIe 3.0.

• Expandability: FMC HPC expansion port allows for additional functionality.
