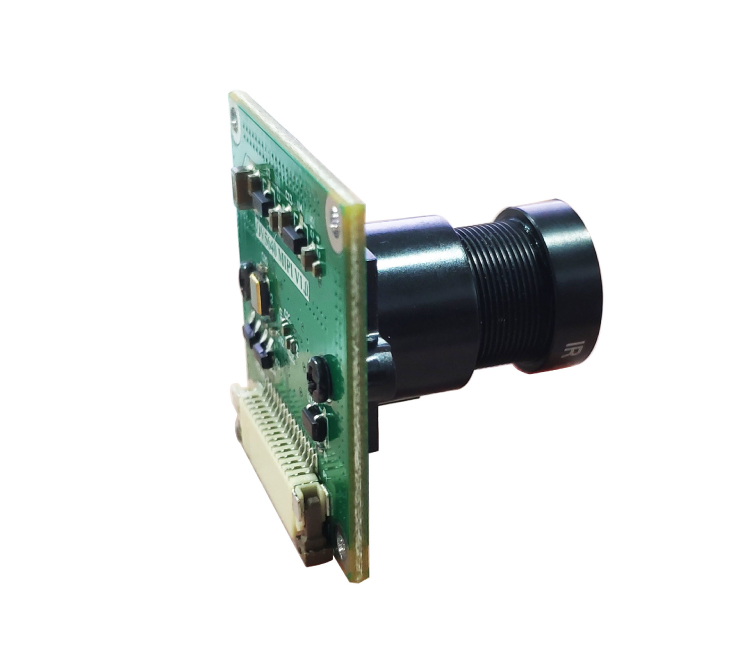

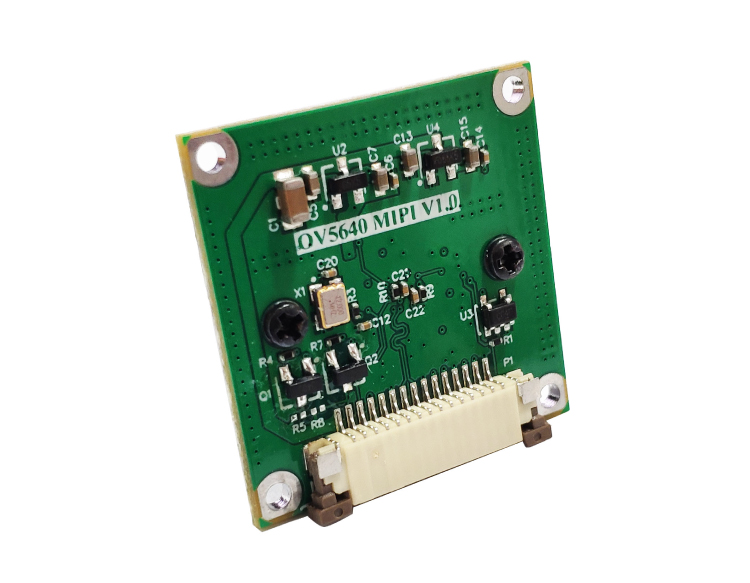

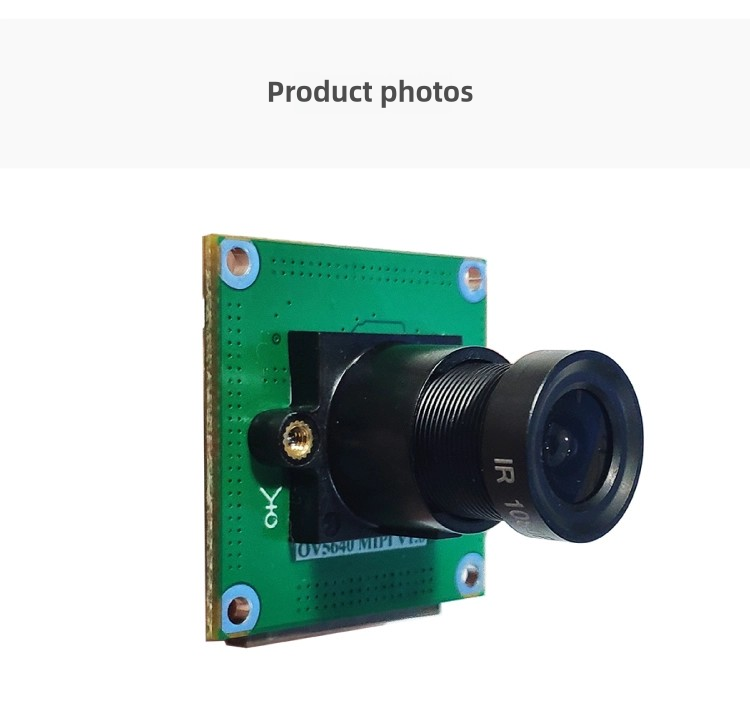

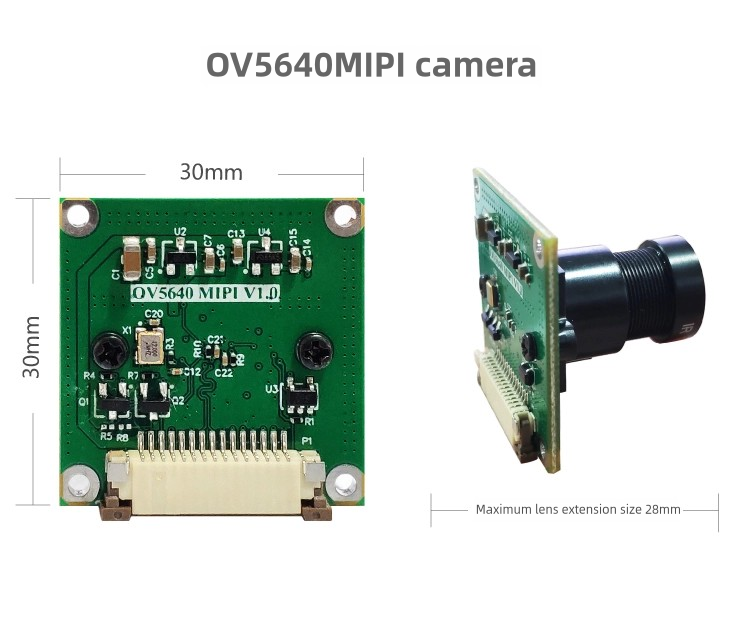

MIPI Camera OV5640

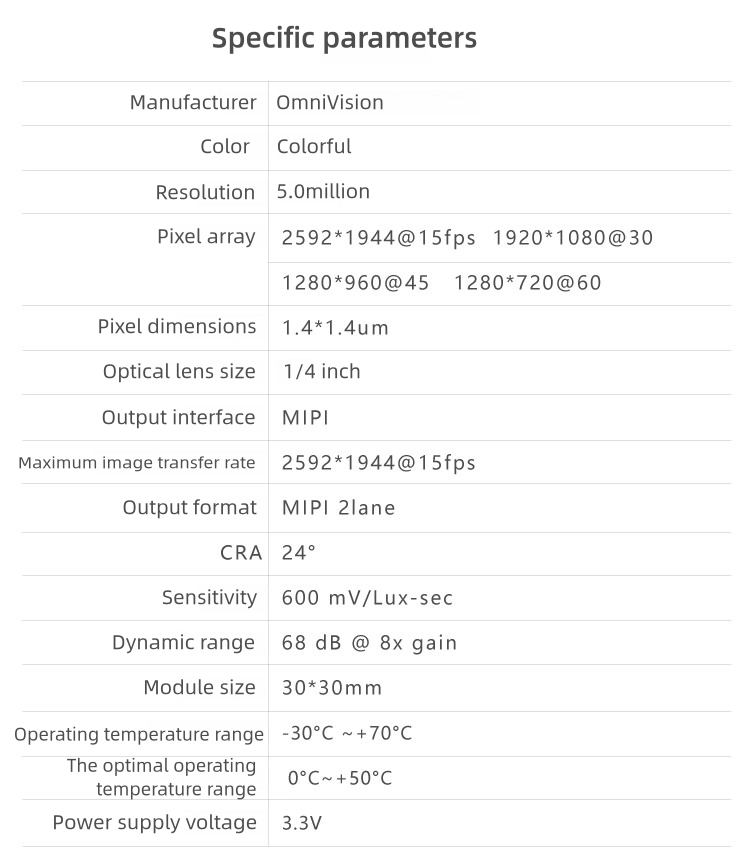

The OV5640 is a 5-megapixel (MP) CMOS image sensor known for its relatively low cost and decent performance. Key features include:

Key Features of OV5640

1. Resolution:

   • Supports up to 5 megapixels (2592×1944) for high-quality image capture.

2. Pixel Size:

   • 1.4 µm x 1.4 µm pixel size, ensuring good light sensitivity.

3. Output Formats:

   • Supports multiple output formats, including:

     • RAW RGB

     • RGB565/555/444

     • YUV422

     • YCbCr422

     • JPEG (compressed image output).

4. Frame Rate:

   • 15 fps at full resolution (2592×1944).

   • 30 fps at 1080p (1920×1080).

   • 60 fps at 720p (1280×720).

5. Auto-Focus (AF):

   • Built-in auto-focus functionality for capturing sharp images.

6. Low Power Consumption:

   • Optimized for power efficiency, making it suitable for battery-powered devices.

7. Interfaces:

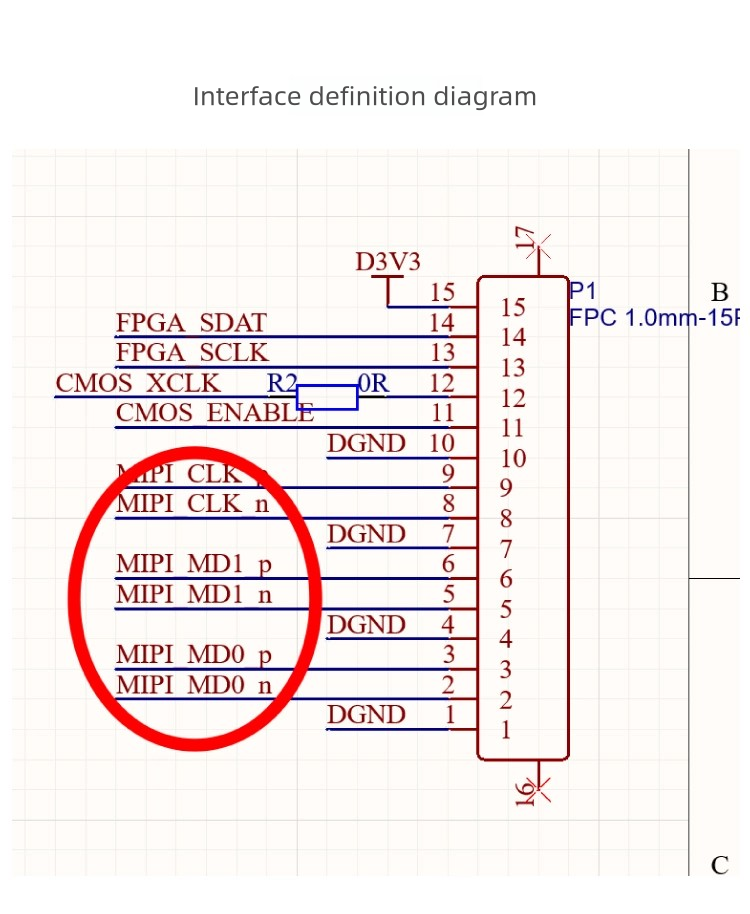

   • Supports DVP (Digital Video Port) and MIPI CSI-2 interfaces for flexible integration with host processors.
