Dual-camera adapter board based on FEP_GPIO_CEPX3 camera module

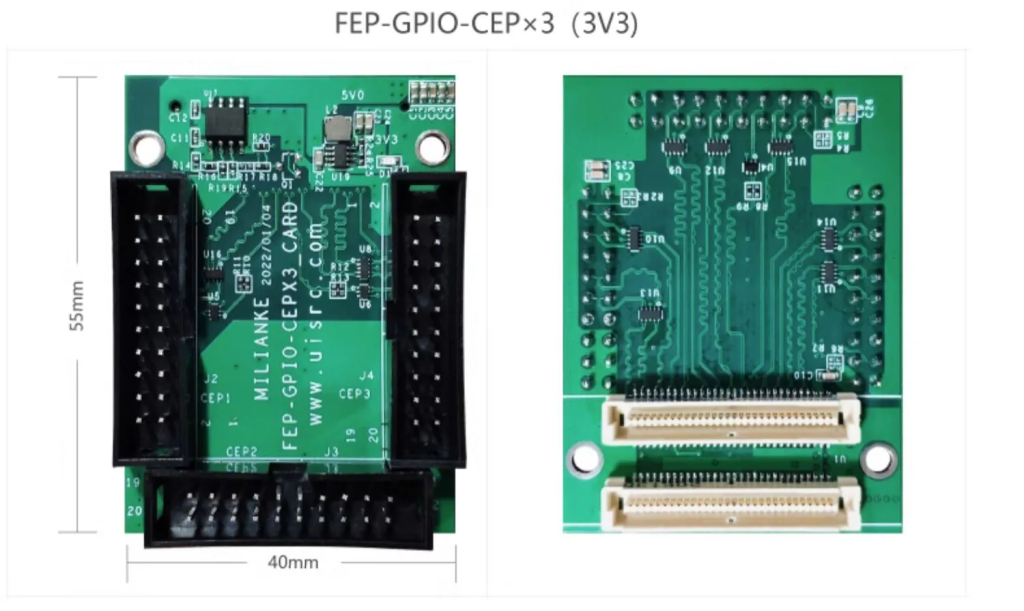

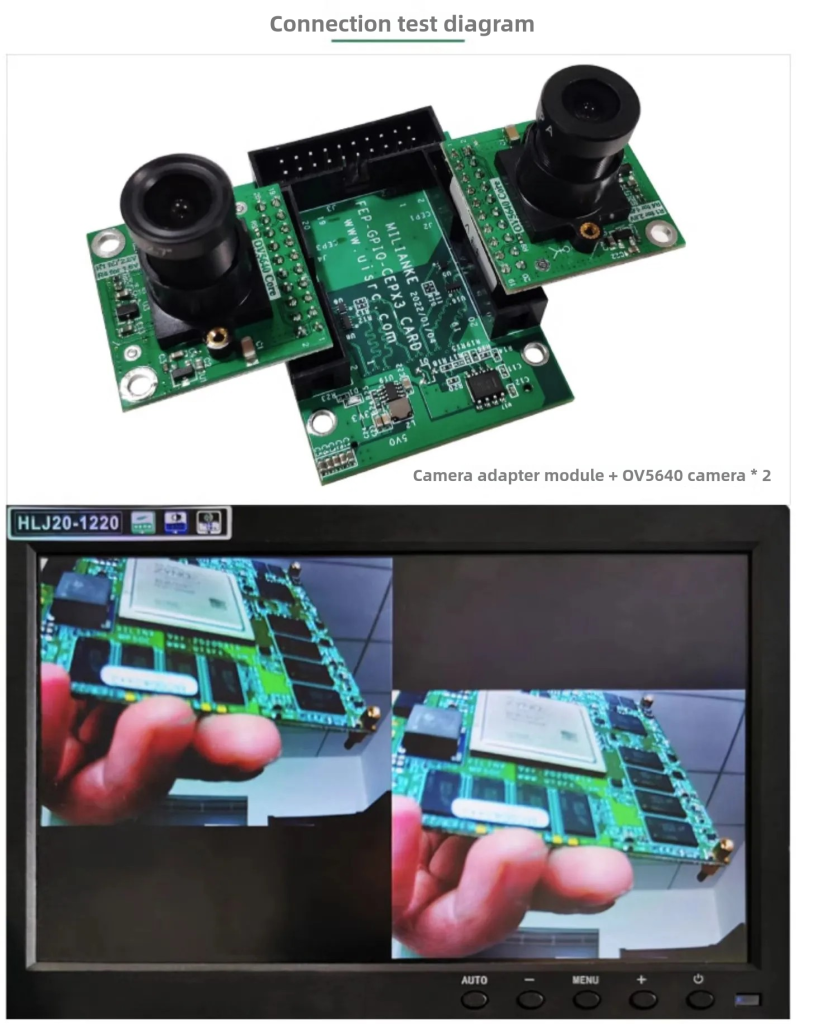

The FEP_GPIO_CEPX3 is a camera adapter module available in 1.8V and 3.3V versions. it features three CEP interfaces with a 2.54mm pin pitch, compatible with Milinker’s ov5640, ov7725, and mt9v034 cameras. Users can utilize it for monocular, binocular, and trinocular camera development, as well as custom GPIO applications.

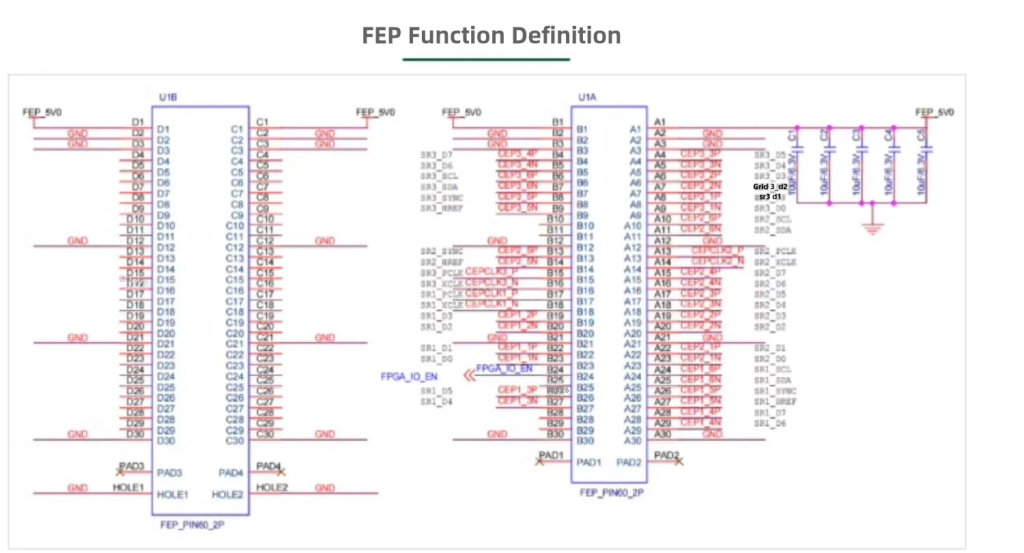

The module has IO protection functionality for cameras. When in use, the FPGA l0 EN signal pin must be high for pin i of each CEP inteface to have a 3.3V power supply. Therefore, users of MllANKE cameras should ensure that the camera IO voltage matches the voltage version of this adapter module.
