FEP-HDMI7611, 3.3V or 1.8V

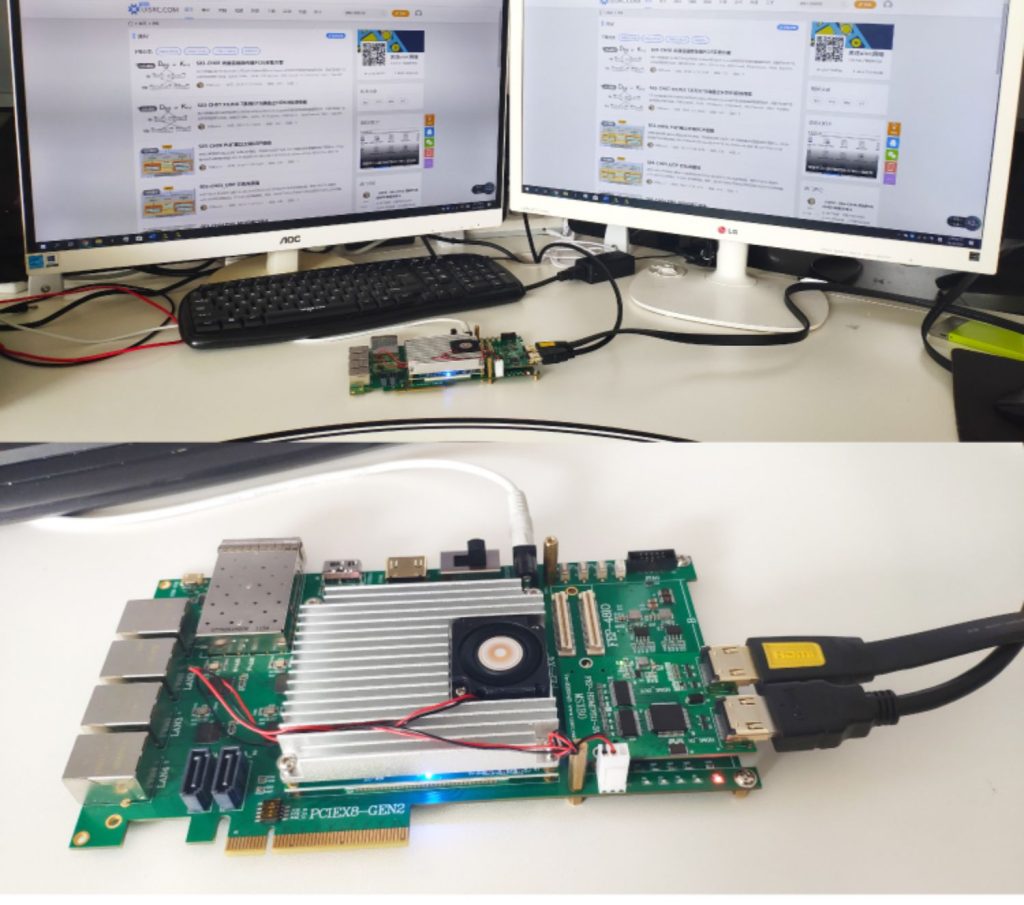

Connection test diagram

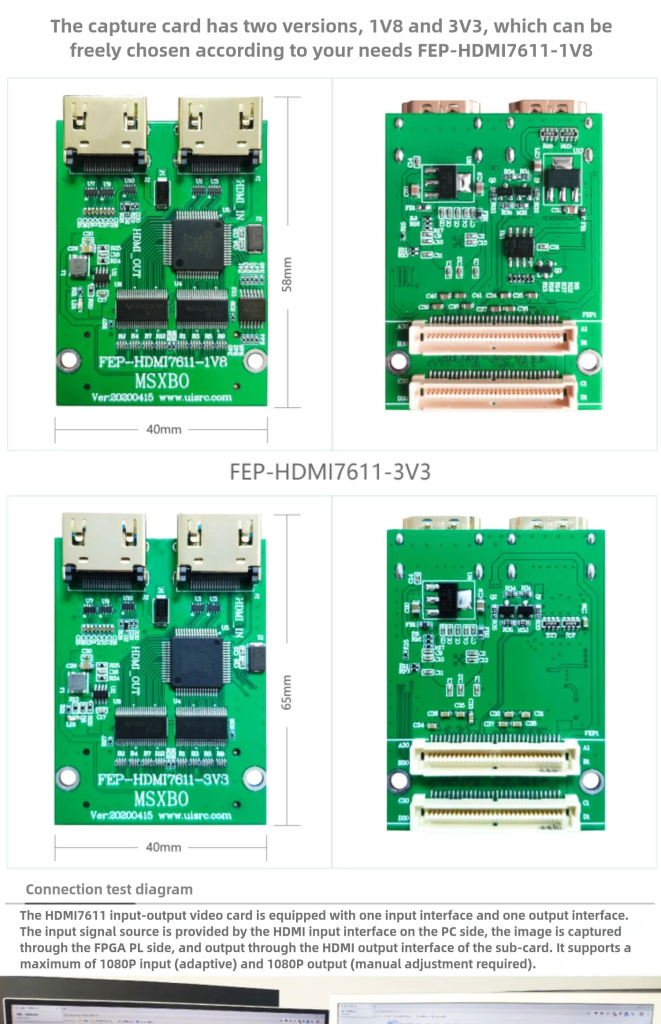

The HDMI7611 input-output video card is equipped with one input interface and one output

interface. The input signal source is provided by the PC-side HDMI input interface, images are

captured through the FPGA PL side, and output via the sub-card’s HDMI output interface. it supports a maximum of 1080P input (adaptive) and 1080P output (manual adjustment required).
