Product Overview

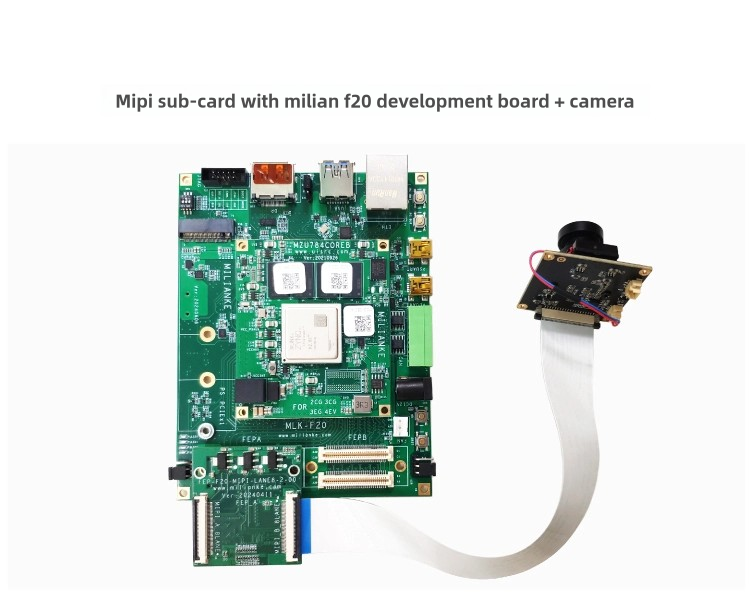

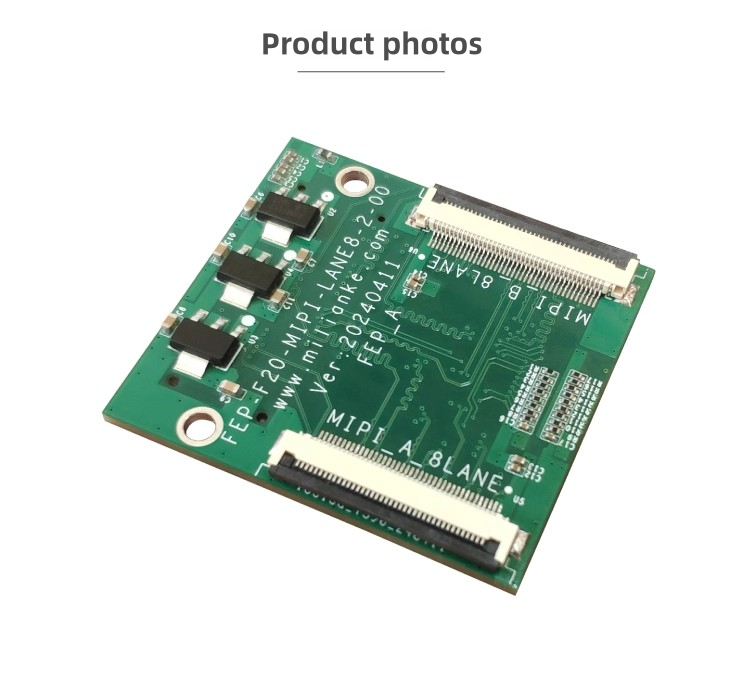

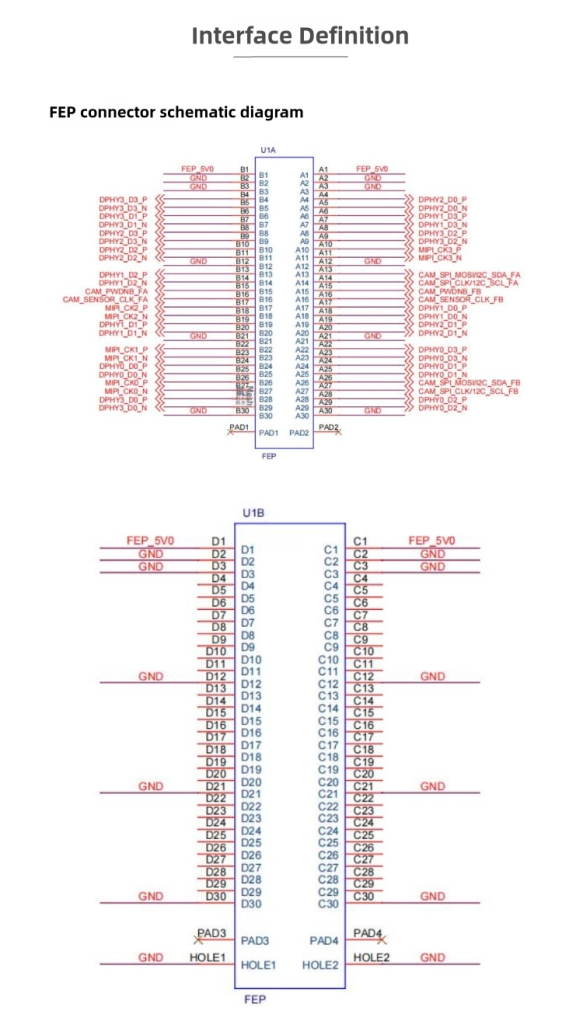

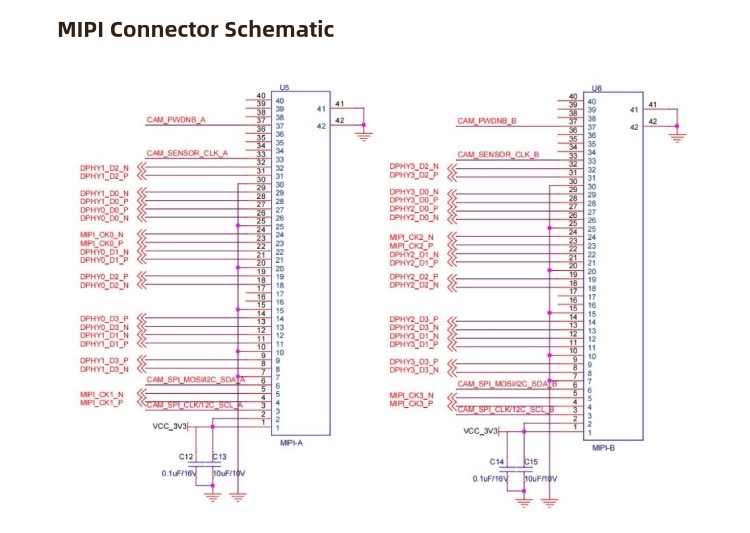

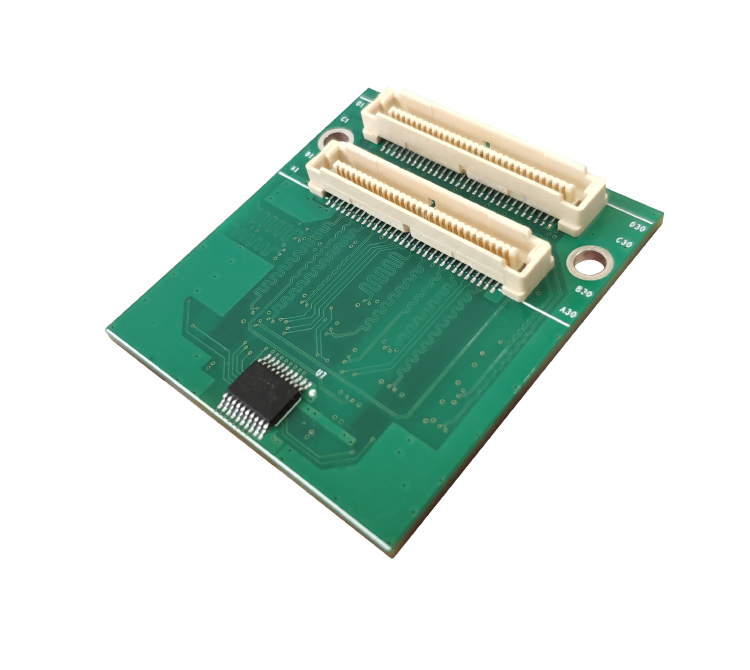

The FEP-F20-MIPI-8LANE-2-00 daughter card is a MIPI interface video daughter card launched by MILIANKE. It features 2 MiPi-CSl interfaces, each designed with a 2×4 LANE interface.The module uses a fixed FEP expansion interface, characterized by low cost and strong practicality. lt is a board card that is only compatible with the FEPA expansion interface on the MLK-F20-CM02 development board.

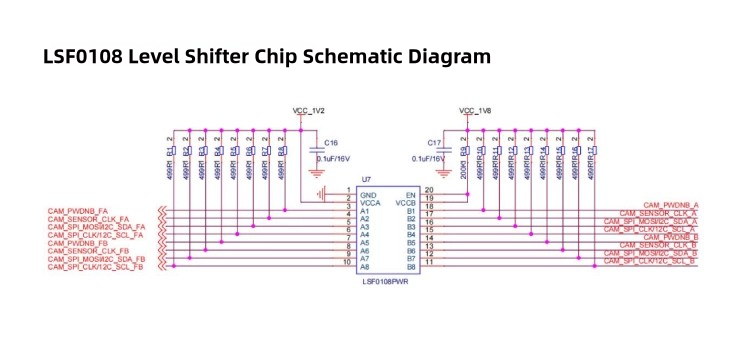

The control signal of the 2-lane MlPl interface is a 1V8 level signal. To be compatible with the 1V2 10 interface of the MLK-F20-CM02 development board, the LSF0108 level shifter chip is used.
When using, please ensure that the FEPA voltage of the MLK-F20-CM02 development board is
1.2V (it can be adjusted on the development board, the default shipment is 1.8V). lf it has not
been adjusted, do not use it arbitrarily, if you have any questions, please contact customer
service for consultation.
