FEP-COM-BASE-CARD RS422 232 CAN

Product introduction

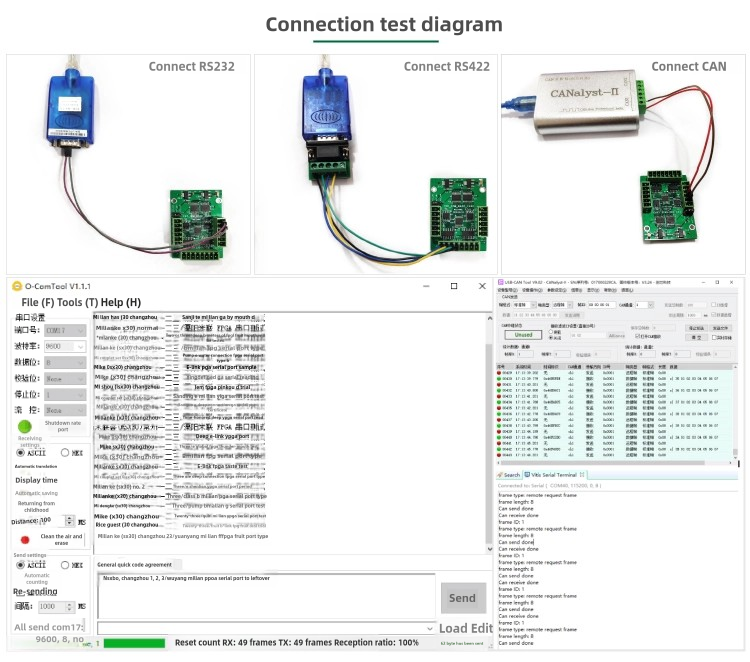

FEP COM BASE CARD is a serial communication module that features 2 Rs232 interfaces, 2 full-duplex RS422 interfaces, and 2 CAN interfaces.

The RS232 interface uses the MAX3232lPW chip, with a maximum speed of 250kbit/s.

The RS422 interface uses the SlT3491E chip, with a maximum speed of 12Mb/s.

The CAN interface uses the SN65HVD232DR chip, with a maximum speed of 1Mb/s.

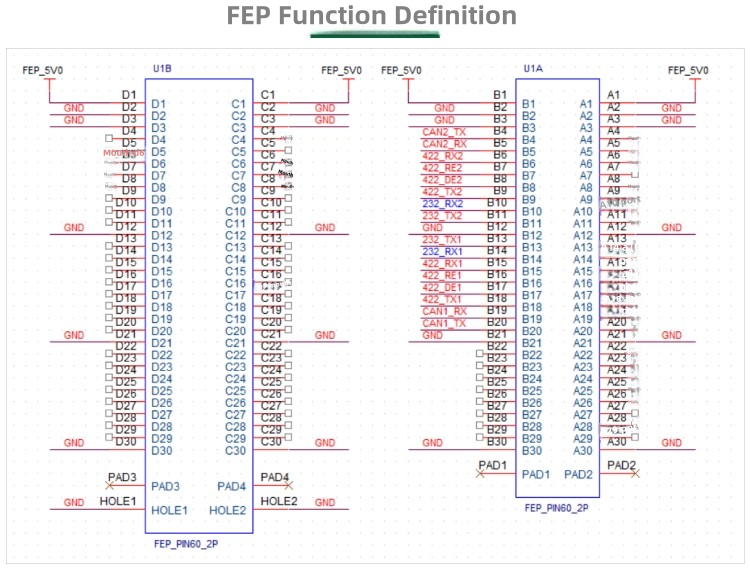

To be compatible with 1.8V and 3.3V 10 interfaces, the TXs0108 level conversion chip is used, and the voltage of VCC ADl can be adjusted via jumpers. When in use, please ensure that the voltage connected by the jumper matches the 10 voltage of the FEP interface on the baseboard, The mating plug for the interface can use Dupont wires or a KF2EDG plug with a 3.5mm pitch.
